Model
PWS1700-STN

Item specifics

Brand
Beijer
Warranty
365 Days
Size
5.7 INCH
Product Line
PWS Series
Supply

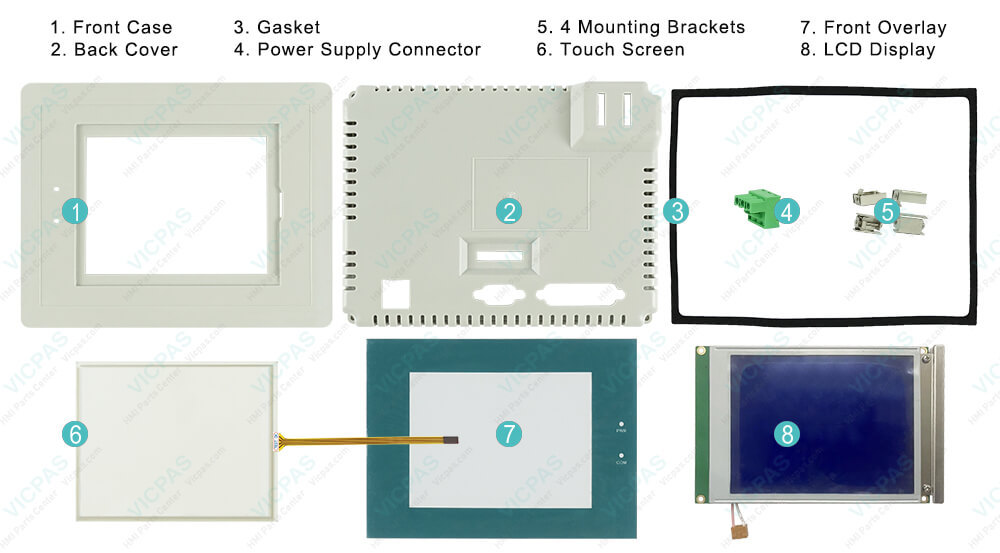

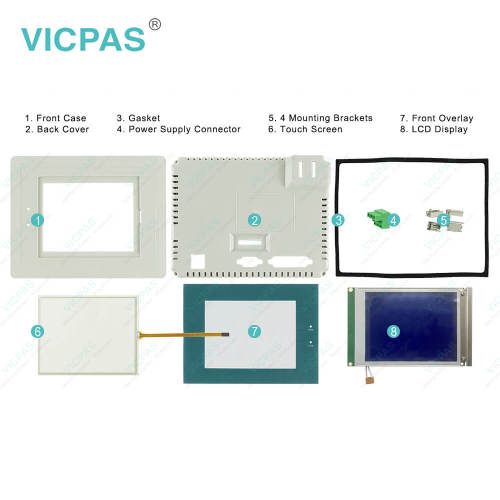

PWS1700-STN Repair Kit

Review

Description

Beijer HMI PWS1700-STN Touch Screen Panel Repair Replacement


Beijer PWS1700-STN Operator Panel Touch screen Repair Replacement

Beijer PWS1700-STN 5.7'' graphic touch HMI kits include touchscreen and overlay


• 16 shades of blue
• STN display
• COM Port x1
• 240 x 240 pixels

HITECH-PWS series offers valuable fundamental HMI functionality. The series include keypad and touchscreen interfaces and will be available in seven different sizes.The PWS series provides valuable basic HMI functions. This series includes a keyboard and touch screen interface, from 3 inches to 10.4 inches in 7 different sizes. The PWS series provides three functional levels: Standard, Plus and Network, and you can select and purchase the required HMI technology level.As an operating terminal, the Standard version contains most of the hardware and software requirements that should exist in terms of existing sizes.The Plus version has the same functions as the Standard version, and has expanded memory for data/recipe processing, and a multi-function port for output.


VICPAS supply Beijer PWS1700-STN touchscreen with 12 months warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the Beijer PWS1700-STN HMI Parts.

Brand: Beijer
Touch type: Resistive
Housing material:Plastic, Gray
Warranty: 6-Months Warranty
Product Line:Beijer HITECH PWS
Display Type:LCD
Size: 5.7 INCH
Resolution:240*240 pixels
Part Number:PWS1700-STN
Display type: Color TFT LCD


Beijer PWS1700-STN Operator Panel HMI Manuals PDF Download:

  • Beijer HITECH PWS Series Manuals
  • Beijer PWS1700-STN datasheet pdf


  • FAQ:

    Question: How to instiall PWS1700-STN Terminal?

    Answer:The basic H-Designer system requirements are as follows:
    – PC - CPU 80586 or higher;
    – Memory - 64 MB RAM or more;
    – Hardware - 60 MB or more available hard drive space;
    – Display - VGA or SVGA. Microsoft Windows with 256 colors or higher, and aresolution of 800×600 or higher.
    Since all the programs in the H-Designer suite have been compressed, you need touncompress and install the software before using it.


    Question: What is the Ladder Programming of Beijer H-Series operator panel?

    Answer:TLadder logic is a method of drawing electrical logic schematics. It can also be used forprogramming controllers. A program in ladder logic, also called a ladder diagram, issimilar to a schematic for a set of relay circuits.
    H-series operator terminals and H-Designer support ladder programming and functionsin a continuous, cyclical series of tasks called scan. When the operator terminalis running, your program should be in one of the following status: RUN, STOP,PAUSE, and ERROR, and you can control the status changing by using debug commandsand inserting instructions in your program.
    Detailed information about using ladder programming as well as examples are availableby selecting Help/LadderPlus in H-Designer


    Question: What is PWS1700-STN Touch Screen HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
