Beijer HMI Hitech PWS6A00T-N 300-51701 Touchscreen
- Model
- PWS6A00T-N
Item specifics
- Brand
- Beijer
- Warranty
- 365 Days
- Size
- 10.1 INCH
- Product Line
- PWS Series
- Supply
- PWS6A00T-N Repair Kit
- Part Number
- 300-51701
Review
Description
Beijer HMI PWS6A00T-N 300-51701 Protective Film Membrane Switch Touch Screen Panel Housing Replacement
Order each part separately is available

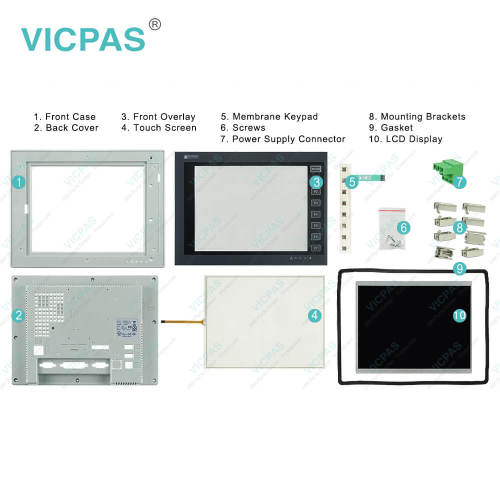

Beijer PWS6A00T-N 300-51701 10.1'' graphic touch HMI kits include Membrane Keypad Switch, Enclosure, Mounting Brackets, Power Supply Connector, touchscreen and overlay
• 64k color
• TFT display
• COM Port x3
• CF card
• USB host x2
• USB device x1
• 800 480 pixels
HITECH-PWS series offers valuable fundamental HMI functionality. The series include keypad and touchscreen interfaces and will be available in seven different sizes. The PWS series provides valuable basic HMI functions. This series includes a keyboard and touch screen interface, from 3 to 10.4 inches in 7 different sizes. The PWS series provides three functional levels: Standard, Plus and Network, and you can select and purchase the required HMI technology level. As an operating terminal, the Standard version contains most of the hardware and software requirements that should exist in terms of existing sizes. The Plus version has the same functions as the Standard version, and has expanded memory for data/recipe processing, and a multi-function port for output.
VICPAS supply Beijer PWS6A00T-N Operator Panel Keypad, Enclosure, Power Supply Connector, Mounting Brackets, touchscreen and Overlay with 12 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Beijer PWS6A00T-N HMI Parts.
| Brand: | Beijer |
| Touch type: | Resistive |
| Housing material: | Plastic, Gray |
| Warranty: | 6-Months Warranty |
| Product Line: | Beijer HITECH PWS |
| Display Type: | LCD |
| Size: | 10.1 INCH |
| Resolution: | 800x480 pixels |
| Part Number: | 300-51701 |
| Display type: | Color TFT LCD |
Beijer PWS6A00T-N Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to instiall PWS6A00T-N Terminal?
Answer:The basic H-Designer system requirements are as follows:
– PC - CPU 80586 or higher;
– Memory - 64 MB RAM or more;
– Hardware - 60 MB or more available hard drive space;
– Display - VGA or SVGA. Microsoft Windows with 256 colors or higher, and aresolution of 800×600 or higher.
Since all the programs in the H-Designer suite have been compressed, you need touncompress and install the software before using it.
Question: What is the Ladder Programming of Beijer H-Series operator panel?
Answer:TLadder logic is a method of drawing electrical logic schematics. It can also be used forprogramming controllers. A program in ladder logic, also called a ladder diagram, issimilar to a schematic for a set of relay circuits.
H-series operator terminals and H-Designer support ladder programming and functionsin a continuous, cyclical series of tasks called scan. When the operator terminalis running, your program should be in one of the following status: RUN, STOP,PAUSE, and ERROR, and you can control the status changing by using debug commandsand inserting instructions in your program.
Detailed information about using ladder programming as well as examples are availableby selecting Help/LadderPlus in H-Designer
Question: What is PWS6A00T-N mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
