Ormon NS5 HMI NS5-SQ01-V2 Touch Panel Replacement
- Model
- NS5-SQ01-V2
Item specifics
- Brand
- Omron
- Warranty
- 365 Days
- Product Line
- Omron NS5 series
- Supply
- Omron NS5 Repair Kit
- Size
- 5.7 inch
- Model
- NS5-SQ01-V2
Review
Description

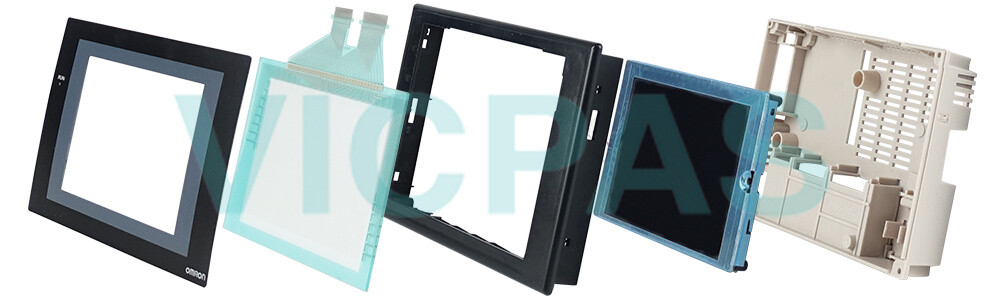

Omron NS5 series HMI NS5-SQ00B-V1 Touch panel,Protective film and Display Repair Kit.
Order each part separately is available
NS5-SQ00B-V1 A hand-held version of the NS5 is now available to perform operations at the production site. The NS-series PT'shave a complete set of functions that can be used at the production site, such as the SAP Library, multi-languagesupport, and Programming Console functions.
The NS-Series of HMIs deliver functionality that helps customers improve their process while minimizing development time. All NS-Series HMIs feature 256 colors (32,768 for image data), USB Slave/Host and optional embedded Ethernet connection. A built-in Smart Active Parts library provides customers with pre-made objects for various applications, also for Temperature Controllers and Motion Controllers. Use the built in FTP Web Interface on Ethernet embedded models to interact with screens remotely. Develop and test your HMI screens and PLC programs without hardware using the integrated simulator. Connect the video module to the back and view live images from a camera on the line.
VICPAS supply NS5-SQ00B-V1 Omron NS5 Touchscreen glass,Overlay and Display with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the NS5-SQ00B-V1 Omron NS5 Parts.
| Part Number: | NS5-SQ00B-V1 |
| Display device: | STN color LCD |
| Screen diagonal: | 5.7 in |
| Warranty: | 365 Days |
| Product Line: | Omron NS5 Series |
| Case color: | Ivory |
| Number of colors : | 256 |
| Resolution: | 320 * 240 |
| Service life: | 75,000 hours min. |
| Number of dots: | 320 × 240 dots |
Related Omron NS5 Series Part No. :
Omron NS5 Series HMI Manuals PDF Download:
FAQ:
Question:Which software Omron NS5 series HMI use for programming?
Answer:CX-One software allows users to build, configure and program a host of devices such as PLCs, HMIs and motion-control systems and networks using just one software package with one installation and license number. This greatly reduces the complexity of the configuration and allows automation systems to be programmed or configured with minimal training.
Question: What is the dimension of NS5-SQ00B-V1 Omron NS5-SQ00B-V1 Touch Panel??
Answer:The dimension of NS5-SQ00B-V1 Omron NS5 HMI is 5.7 inch ,which is 148mm long and 118mm wide.
Question: What is the NS5-SQ00B-V1 Omron NS5 touchscreen, protective fim ,diplay and other HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
