Model
6AV3617-1JC00-0AX2

Item specifics

Brand
Siemens
Warranty
6 Months
Product Line
Siemens OP17 Operator Panel
Supply
SIMATIC HMI OP17 Membrane Keyboard and Shell
width
233mm
height
161mm
model
6AV3617-1JC00-0AX2

Review

Description

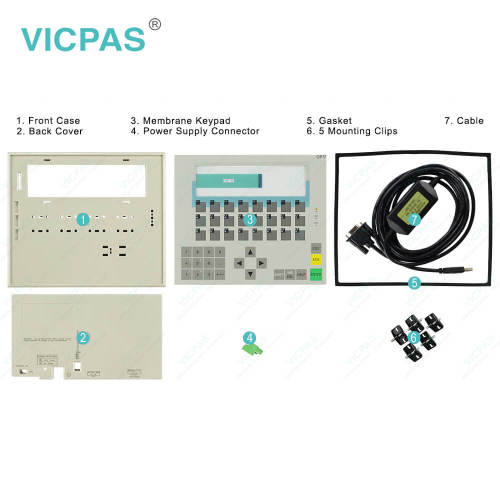

6AV3617-1JC00-0AX2 Siemens SIMATIC HMI OP17 OP 17 OPERATOR PANEL Membrane Keyboard, Mounting Clips, Power Supply Connector, Case Gasket and Plastic Case Shell Repair Replacement

Order each part separately is available

6AV3617-1JC00-0AX2 Siemens SIMATIC HMI OP17 OP 17 OPERATOR PANEL Membrane Keyboard, Case Gasket, Power Supply Connector, Mounting Clips and Plastic Case Shell Repair Replacement

6AV3617-1JC00-0AX2 Operator Panel OP 17/PP LC display, LED backlit 4x 20/8x 40 lines x characters SIMATIC S5, 505, native drivers with UL/CSA approval


The 6AV3617-1JC00-0AX2 OP17 has a plastic housing with a touch-sensitive front and is therefore suitable for ungrounded installation. The coloring of the front foil conforms with machinery directive EN 60204.

The OP17 is available in the following versions:
• OP17/PP,
• OP17/DP and
• OP17/DP-12.
The versions differ only in their communication options. figure 1-3 shows the design of Operator Panel OP17.


VICPAS supply 6AV3617-1JC00-0AX2 Siemens OP17 membrane switch, Mounting Clips, Case Gasket, Power Supply Connector and HMI Case with 6 months warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 6AV3617-1JC00-0AX2 Siemens OP17 HMI Parts.

Number of system keys : 22
Numerical keypad: YES
Character size: 5 mm
Warranty: 6-Months Warranty
Product Line: Siemens OP17
Number of function keys: 24
Part Number: 6AV3515-1EB30-1AA0
System keys: YES
Design as touch screen: No
Design of display: LC display


Related Siemens OP17 Part No. :

SINUMERIK Operator panel OP17 Description Inventory status
6AV3617-4EB12-0AA0 PP32/OP17 BUILT-IN UNIT In Stock
6AV3617-4EB42-0AA0 PP32/OP17 In Stock
6AV3617-1JC00-0AX2 OP17/PP OPERATOR PANEL In Stock
6AV3617-1JC20-0AX2 OP17/DP OPERATOR PANEL In Stock
6AV3617-1JC30-0AX2 OP17/DP12 OPERATOR PANEL In Stock
6AV3617-1JC30-0AX1 OP17/DP12 OPERATOR PANEL In Stock
6AV3617-1JC00-0AX1 OP17/PP OPERATOR PANEL In Stock
6AV3617-1JC20-0AX1 OP17/DP OPERATOR PANEL In Stock
6AV3617-1JC30-0AX0 Operator Panel OP17/DP12 In Stock
6AV3617-4EB42-0AL0 OP17 PP32 In Stock
6AV3617-4EB42-1AA0 OP17 PP32 In Stock
6AV3617-4FB42-0AL0 OP17 PP32 In Stock
6AV3617-5BA00-0BC0 OP17 DP In Stock
6AV3617-5BB00-0AB0 OP17 DP In Stock
6AV3617-5BB00-0AB1 OP17 DP In Stock
6AV3617-5BB00-0AJ0 OP17 DP In Stock
6AV3617-5BB00-0BD0 OP17 DP In Stock
6AV3617-5BB00-OBEO OP17 DP In Stock
6AV3617-5CA00-0AD0 OP17 DP12 In Stock
6AV3617-5BB00-0AE0 OP17\DP In Stock
Siemens Operator panel OP17 Description Inventory status


Siemens OP17 series HMI Manuals PDF Download:

  • 6AV3617-1JC00-0AX2 SIMATIC HMI OP17 datasheet pdf
  • Siemens Simatic OP17 HMI operator panel keypad manual


  • FAQ:

    Question: What is the dimension of 6AV3617-1JC00-0AX2 Siemens OP17 membrane switch??

    Answer:It is 230 millimeter long and 194 millimeters wide.


    Question: How to Backup the battery Siemens OP17 Operator Panel?

    Answer:You can upgrade the OP17 with an optional backup battery. When the powersupply is interrupted, the backup battery ensures that• the operating data in the OP17 message buffer are retained and• the hardware clock continues to run on its internal reserve power.


    Question: What is the 6AV3617-1JC00-0AX2 Siemens OP17 mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
