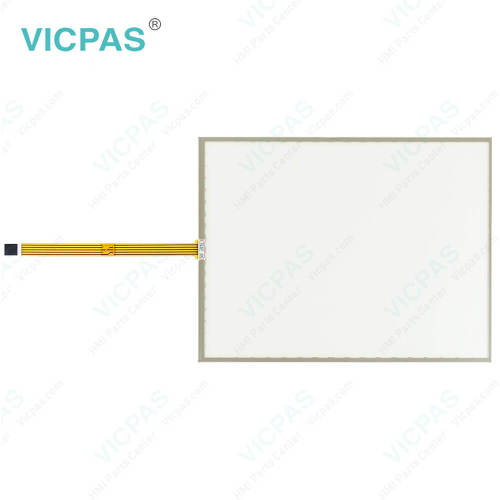

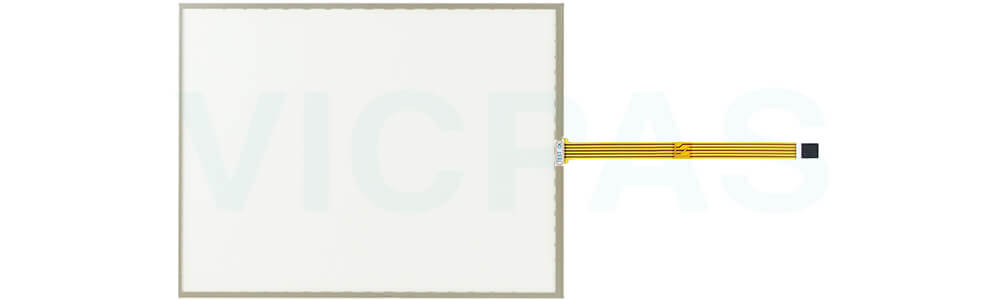

83F4-4180-F0123 TR5-150F-12N Touch Screen Panel Glass

Group Liyitec Touch Screen Panel
Min. Order 1 piece
Terms of Payment Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time 2018-11-29
Item specifics
Warranty365 Days
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
KeywordTouch Screen Panel
KeywordTouch Screen Glass
Name83F4-4180-F0123 TR5-150F-12N Touch Screen Panel Gl
Description
83F4-4180-F0123 TR5-150F-12N Touch Screen Panel Glass repair



83F4-4180-F0123 TR5-150F-12N touchscreen size: inch, other general size is 3.0'' to 22''. the touchscreen warranty 365 days and fully test before shipment. touch panel adopt to panel display device. touch screen monitor linearity error:< 1.5%. 83F4-4180-F0123 TR5-150F-12N touch digitizer glass response speed: < 10ms, HMI touch screen temperature operating range: -10°C ~ 60°C. touch screen temperature storage range: -20°C ~ 70°C. touch screen current: 5mA~25mA, the touchscreen warranty 365 days and fully test before shipment. 83F4-4180-F0123 TR5-150F-12N touch membrane operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.

 Contact VICPAS for More Information


Product Feature:

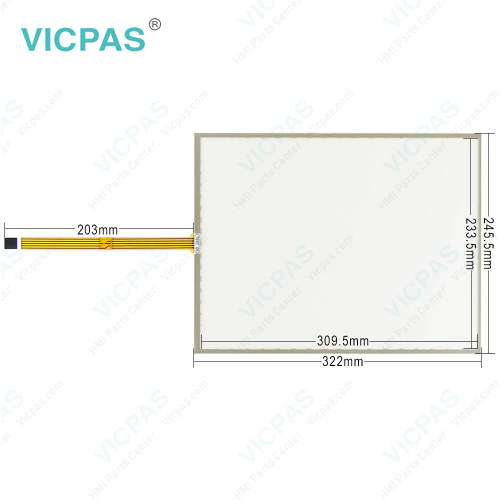

Size : 15 inch;
Shipping : 2~3 Workdays
Warranty : 365 Days

* Mechanical
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Times More than 1 million touches
Touch Activation Force 20~80g
* Electrical
Current 5mA~25mA
Electrostatic Endurance No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
Isolation Resistance >20MΩ @ DC 25V
Resistance 300Ω < X Axis <900Ω , 200Ω < Y Axis <800Ω (Varies with different size)
Agency Approvals CE, FCC, RoHS
Operation System Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
