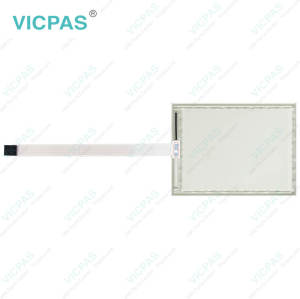

E241813 SCN-AT-FLT15.0-Z05-0H1-R Touch Screen Glass

Group For ELO Touch Panel with 4 / 5 Wires
Min. Order 1 piece
Terms of Payment Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time 2018-07-02
Item specifics
Warranty365 Days
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
KeywordTouch Screen Panel
KeywordTouch Screen Glass
NameE241813 SCN-AT-FLT15.0-Z05-0H1-R Touch Screen Glas
Description
E241813 SCN-AT-FLT15.0-Z05-0H1-R Touch Screen Glass repair



E241813 SCN-AT-FLT15.0-Z05-0H1-R touchscreen size: inch, other custom size is 3.0'' to 24''; E241813 SCN-AT-FLT15.0-Z05-0H1-R touch screen adopt to panel display device.E241813 SCN-AT-FLT15.0-Z05-0H1-R touch screen monitor linearity error:< 1.5%.E241813 SCN-AT-FLT15.0-Z05-0H1-R touch digitizer glass response speed: < 10ms.E241813 SCN-AT-FLT15.0-Z05-0H1-R touch screen glass touch times are more than 1 million touches.E241813 SCN-AT-FLT15.0-Z05-0H1-R touch panel temperature operating range: -10°C ~ 60°C, E241813 SCN-AT-FLT15.0-Z05-0H1-R touch membrane works altitude: up to 3000m.E241813 SCN-AT-FLT15.0-Z05-0H1-R touch screen hmi operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.

 Contact VICPAS for More Information


Product Feature:


Size :  15 inch;
Shipping : 2~3 Workdays
Warranty : 365 Days

* Mechanical
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Times More than 1 million touches
Touch Activation Force 20~80g
* Electrical
Current 5mA~25mA
Electrostatic Endurance No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
Isolation Resistance >20MΩ @ DC 25V
Resistance 300Ω < X Axis <900Ω , 200Ω < Y Axis <800Ω (Varies with different size)
Agency Approvals CE, FCC, RoHS
Operation System Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
