Model
TP-3151S1 TP-3151S2 TP-3151S3 TP-3151S4

Item specifics

Touch screen panel type
Resistance touch screen
Warranty
365 Days
Shipping
2-3 workdays
Name
TP-3151S1 TP-3151S2 TP-3151S3 TP-3151S4 touch scre

Review

Description

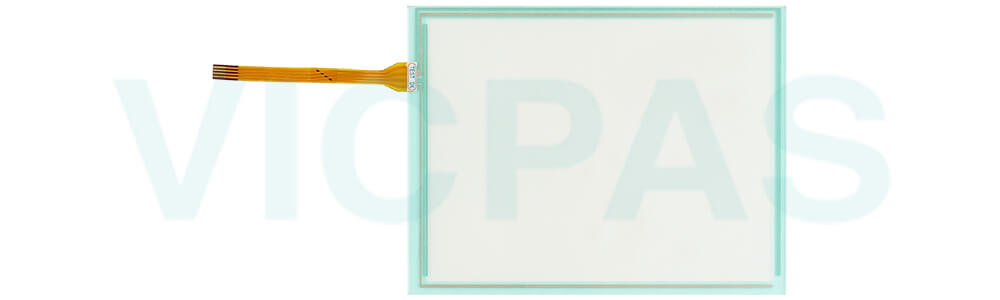

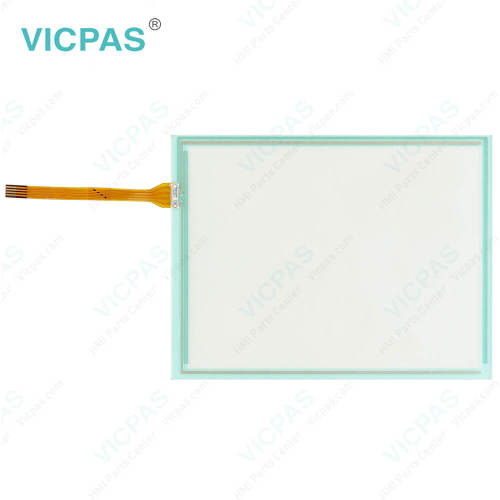

TP-3151S1 TP-3151S2 TP-3151S3 TP-3151S4 touch screen panel glass

TP-3151S1 TP-3151S2 TP-3151S3 TP-3151S4 touch screen panel glass

Resistive TP-3151S1 TP-3151S2 TP-3151S3 TP-3151S4 touch panel is a method of detecting position by energizing the contact point of the electrodes (ITO film: transparent conductive film) facing each other, and is used in various devices such as ATMs at banks, ticket vending machines at stations, and especially in industrial applications as a reliable TP-3151S1 TP-3151S2 TP-3151S3 TP-3151S4 touch panel.

TP-3151S1 TP-3151S2 TP-3151S3 TP-3151S4 Touchscreen system with strong popularity in industrial applications
A highly reliable TP-3151S1 TP-3151S2 TP-3151S3 TP-3151S4 touch panel that has been used in a wide range of applications for many years.

The resistive film method is a system used in many industrial applications, especially in factory automation (FA). It detects the position by measuring the electrical voltage generated when two electrically conductive films (ITO: Indium Tin Oxide) touch. The position is detected by measuring the voltage generated when the conductive film (ITO: Indium Tin Oxide) is touched. It is sometimes referred to as a "pressure-sensitive" system. It has advantages such as stability, positioning accuracy, ease of installation, and low cost.

TP-3151S1 TP-3151S2 touchscreen size: inch, other custom size is 3.0'' to 24'' . TP-3151S3 TP-3151S4 touch membrane adopt to panel display device. TP-3151S1 TP-3151S2 touch screen display light transmission: 80%(Meet ASTM D1003). TP-3151S4 TP-3151S3 touchscreen temperature operating range: -10°C ~ 60°C. TP-3151S1 TP-3151S2 touch panel temperature storage range: -20°C ~ 70°C. TP-3151S1 TP-3151S2 touch screen tablet resistance: 300Ω < X Axis < 900Ω, 200Ω < Y Axis < 800Ω (Varies with different size). TP-3151S3 TP-3151S4 HMI touch glass operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.


Product Details:


Size :  inch;
Shipping : 2~3 Workdays
Warranty : 365 Days

* Optical
Light Transmission 80%(Meet ASTM D1003)
Storage Range: 0% to 95% RH (no dew falls)
* Electrical
Operation Voltage Typical +DC 5V
Power Supply USB or RS232
Agency Approvals CE, FCC, RoHS
Operation System Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
