R8219.45 R8219-45A R8219-45 B Touch screen panel for Danielson
- Model
- R8219.45 R8219-45A R8219-45 B
Item specifics
- Touch screen panel type
- Resistance touch screen
Review
Description

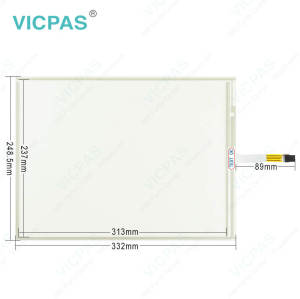

R8219.45 R8219-45A R8219-45 B Touch screen panel for Danielson
Product Description
Fit in with | Panel display device |
* Performance | |
Linearity Error | < 1.5% |
Response Speed | < 10ms |
* Mechanical | |
Input Method | Finger or gloved hand (rubber, cloth or leather) |
Touch Times | More than 1 million touches |
Touch Activation Force | 20~80g |
Surface Durability | Meets pencil hardness 3H (per ASTM D3363) |
* Optical | |
Light Transmission | 80%(Meet ASTM D1003) |
* Environmental | |
Temperature | Operating Range: -10° C ~ 60° C |
Storage Range: -20° C ~ 70° C | |
Relative Humidity | Operating Range: 0%~90% RH (no dew falls) |
Storage Range: 0% to 95% RH (no dew falls) | |
Altitude | Up to 3, 000m |
* Electrical | |
Operation Voltage | Typical +DC 5V |
Power Supply | USB or RS232 |
Interface | Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
Serial RS-232. | |
Current | 5mA~25mA |
Electrostatic Endurance | No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used |
Isolation Resistance | > 20MΩ @ DC 25V |
Resistance | 300Ω < X Axis < 900Ω , 200Ω < Y Axis < 800Ω (Varies with different size) |
Agency Approvals | CE, FCC, Rohs |
Operation System | Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/Mac OS |
More details:
Company Information:
Guangzhou Vicpas Touch Technology is a manufacturer of touch screen, touch panel, membrane keypad with well-equipped testing facilities and strong technical force.
With a wide range, good quality, short delivery, reasonable prices and stylish designs, our products are extensively used in Industrial, Medical, Pos terminal, GPS, CNC repair and other industries.
Our products are widely recognized and trusted by users from more then 60 countries, we can also design and produce by the Customer's sample.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Packaging & Shipping
Outer packing is strong carton with Five corrugating medium, inner packing is foam which would protect the product in well condition.
Shipping :
1, shipping via DHL / FedEx / UPS /TNT / TOLL / Aramex / EMS . Fast , Safe , Good service.
2, We will ship the parcels within 1-3 working days after receiving your payment.
3, Normally , you would receive the parcels within 3 - 5 working days. (if ship by DHL / Fedex / UPS air express) .
4, Please make sure your shipping information are all in correct way (including address / post code / phone number / contact person / VAT number ).
Services:
We provide a 1 year warranty for all the touch screens.
