- Touch screen panel type
- Resistance touch screen
- 19 inch

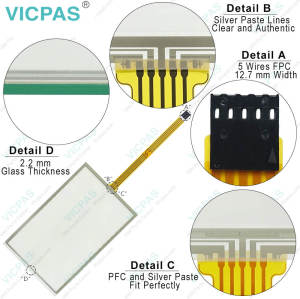

Touch panel screen for PM 9036CH-8 touch panel membrane touch sensor glass replacement repair
size: 19 inch
Fit in with
Panel display device
Finger or gloved hand (rubber, cloth or leather)
More than 1 million touches
Touch Activation Force
Meets pencil hardness 3H (per ASTM D3363)
80%(Meet ASTM D1003)
Operating Range: -10° C ~ 60° C
Storage Range: -20° C ~ 70° C
Operating Range: 0%~90% RH (no dew falls)
Storage Range: 0% to 95% RH (no dew falls)
Up to 3, 000m
Typical +DC 5V
USB or RS232
Full Duplex USB 2.0 (Full Speed) Plug and play compatible
No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
> 20MΩ @ DC 25V
300Ω < X Axis < 900Ω , 200Ω < Y Axis < 800Ω (Varies with different size)
CE, FCC, Rohs
Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
Guangzhou Vicpas Touch Technology is a manufacturer of touch screen, touch panel, membrane keypad with well-equipped testing facilities and strong technical force.
With a wide range, good quality, short delivery, reasonable prices and stylish designs, our products are extensively used in Industrial, Medical, Pos terminal, GPS, CNC repair and other industries.
Our products are widely recognized and trusted by users from more then 60 countries, we can also design and produce by the Customer's sample.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Packaging & Shipping
Outer packing is strong carton with Five corrugating medium, inner packing is foam which would protect the product in well condition.
1, shipping via DHL / FedEx / UPS /TNT / TOLL / Aramex / EMS . Fast , Safe , Good service.
2, We will ship the parcels within 1-3 working days after receiving your payment.
3, Normally , you would receive the parcels within 3 - 5 working days. (if ship by DHL / Fedex / UPS air express) .
4, Please make sure your shipping information are all in correct way (including address / post code / phone number / contact person / VAT number ).
We provide a 1 year warranty for all the touch screens.
