Model
6AV6645-0FD01-0AX0

Item specifics

Warranty
365 Days
Brand
Siemens
Product Line
Mobile Panel 277 IWLAN
Supply
Siemens Mobile Panel Touchscreen Membrane Keypad
Size
7.5 inch
model
6AV6645-0FD01-0AX0

Review

Description

6AV6645-0FD01-0AX0 Siemens Simatic HMI MOBILE PANEL 277 IWLAN((USA-VARIANTE) Touchscreen Glass LCD Display Panel Membrane Keyboard Plastic Housing Repair Replacement

Order each part separately is available

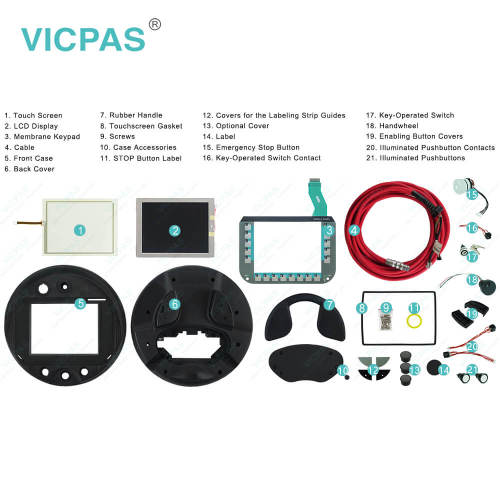

6AV6645-0FD01-0AX0 Siemens Simatic HMI MOBILE PANEL 277 IWLAN(USA-VARIANTE Touchscreen Glass, Membrane Keyboard, Gasket, LCD Display Screen, Enabling Button Covers, Housing, Rubber Handle, STOP Button Label, Screws and Cover for the Labeling Strip Guides Repair Replacement


6AV6645-0FD01-0AX0 SIMATIC MOBILE PANEL 277 IWLAN V2 (USA), CONF. W. WINCCFLEX STANDARD VERSION 2008 AND HIGHER OR TIA PORTALV11 SP2 AND HIGHER INCL. 1 MAIN BATTERY POWER SUPPLY TO BE ORDERED SEPARATELY: 6AV6671-5CE00-0AX1CHARGING ST. 6AV6671-5CN00-0AX2 EXTERNAL POWER SUPPLY UNIT (EU/US/UK/JP)


The second generation of SIMATIC HMI Mobile Panels impresses with its convenience, performance and quality. The highlights: A brilliant widescreen display, particularly simple configuration and the unique illuminated emergency stop button. This series of devices offers panels with 7", 9" and 10" displays, some of which are available with or without safety-related operator controls. The Mobile Panels of the 2nd Generation are the successors of the SIMATIC HMI Mobile Panels x77 with cable connections.


When it comes to high-end mobile applications, opt for mobile panels. These are also for fail-safe machines and widely distributed plants. SIMATIC HMI Mobile Panels 2nd generation transfers the functionality and performance of SIMATIC HMI Comfort Panels to mobile control units. Users benefit from more flexibility and convenience.


VICPAS supply 6AV6645-0FD01-0AX0 Siemens Mobile Panel 277 touch panel, membrane switch, Gasket, LCD Display Panel, Plastic Shell, Rubber Handle, Screws, Enabling Button Covers, STOP Button Label and Cover for the Labeling Strip Guides. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 6AV6645-0FD01-0AX0 Siemens Mobile Panel 277 HMI Parts.

Part Number : 6AV6645-0FD01-0AX0
Touchscreen: TFT
Screen diagonal: 7.5 in
Warranty: 365 days Warranty
Product Line: Siemens Mobile Panel 277 IWLAN
Number of colors: 65 536
Mounting position: vertical
MTBF backlighting (at 25 °C): 50 000 h
Number of online/runtime languages: 16
Control elements: Keys and touch


Related Simatic Mobile Panel 277 Touch Panel and Membrane Keypad Part No. :

Siemens Mobile Panel 277-8 Description Inventory status
6AV6645-0CA01-0AX0 MOBILE PANEL 277(277-8) In Stock
6AV6645-0CB01-0AX0 MOBILE PANEL 277(277-8) In Stock
6AV6645-0CC01-0AX0 MOBILE PANEL 277(277-8) Available Now
6AV6645-0DD01-0AX0 MOBILE PANEL 277 IWLAN(277-8) In Stock
6AV6645-0DD01-0AX1 MOBILE PANEL 277 IWLAN V2(277-8) Available Now
6AV6645-0DE01-0AX0 MOBILE PANEL 277 IWLAN V2(277-8) In Stock
6AV6645-0FD01-0AX0 MOBILE PANEL 277 IWLAN((USA-VARIANTE) In Stock
6AV6645-0DB01-0AX0 MOBILE PANEL 277F IWLAN(277-8) In Stock
6AV6645-0DC01-0AX0 MOBILE PANEL 277F IWLAN(277-8) Available Now
6AV6645-0EB01-0AX1 MOBILE PANEL 277F IWLAN V2(277-8) In Stock
6AV6645-0EC01-0AX1 MOBILE PANEL 277F IWLAN V2(277-8) Available Now
6AV6645-0EF01-0AX1 MOBILE PANEL 277F IWLAN V2(277-8) In Stock
6AV6645-0FD01-0AX1 MOBILE PANEL 277 IWLAN V2(277-8) In Stock
6AV6645-0FE01-0AX0 MOBILE PANEL 277 IWLAN (USA-VARIANTE) In Stock
6AV2124-0XC24-0AX0 MOBILE PANEL 277 IWLAN V2 (EU Version) Available Now
6AV6645-0FE01-0AX1 MOBILE PANEL 277 IWLAN V2(277-8) In Stock
6AV6645-0GB01-0AX0 MOBILE PANEL 277F IWLAN (USA-VARIANTE) Available Now
6AV6645-0GC01-0AX0 MOBILE PANEL 277F IWLAN (USA-VARIANTE) In Stock
6AV6645-0GC01-0AX1 MOBILE PANEL 277F IWLAN V2(277-8) In Stock
6AV6645-0GF01-0AX1 MOBILE PANEL 277F IWLAN(277-8) In Stock
6AV6645-0DD02-0AX1 MOBILE PANEL 277 IWLAN V2 (EU Version) In Stock
6AV6645-0DE02-0AX1 MOBILE PANEL 277 IWLAN V2 (EU Version) Available Now
6AV6645-0EC02-0AX1 MOBILE PANEL 277F IWLAN V2 (EU Version) In Stock
6AV6645-0EB02-0AX1 MOBILE PANEL 277F IWLAN V2 (EU Version) Available Now
6AV6645-0EF02-0AX1 MOBILE PANEL 277F IWLAN V2 (RFID) (EU-Version) In Stock
6AV6651-5GA01-0AA1 Mobile Panel 277 IWLAN V2 Available Now
6AV6651-5HA01-0AA1 Mobile Panel 277 IWLAN V2 In Stock
SIMATIC HMI Mobile Panel 277-8 Description Inventory status

Siemens Mobile Panel 277 IWLAN HMI Manuals PDF Download:

  • 6AV6645-0FD01-0AX0 Siemens Mobile Panel 277  IWLAN datasheet pdf
  • Siemens Simatic Mobile Panel 277  IWLAN Panel manual


  • FAQ:

    Question: What is the size of Siemens Mobile Panel 277  IWLAN touch screen??

    Answer:The Siemens Mobile Panel 277 TouchScreen is 7.5-inch.It is 182 millimeter long and 138 millimeters wide.


    Question: Which software for Siemens Mobile Panel 277  IWLAN programming software?

    Answer:WinCC.WinCC (TIA Portal) is an engineering software for configuring SIMATIC Panels, SIMATIC Industrial PCs, and Standard PCs with the WinCC Runtime Advanced or the SCADA System.WinCC Runtime Professional visualization software.WinCC (TIA Portal) is available in four editions, depending on the configurable operator control.


    Question: What are the 6AV6645-0FD01-0AX0 Siemens Mobile Panel 277  IWLAN Touch Panel and Membrane Switch price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
