Model
6AV2124-0GC01-0AX0

Item specifics

Warranty
365 Days
Brand
Siemens
Product Line
TP700 Comfort
Size
7 inch
Supply
Siemens TP700 HMI Touch Panel LCD Display
Model
Siemens 6AV2124-0GC01-0AX0
Parts
Touch Panel, Protective film, LCD Display, Housing

Review

M***i
2019/8/3 11:01

Excellent service. I received all the help I needed and everyone is very kind and polite. They really have an excellent team too. regards. Massimo

Description

6AV2124-0GC01-0AX0 Siemens TP700 Comfort 6AV2 124-0GC01-0AX0 Touchscreen Glass, Overlay, Enclosure, Case Gasket, LCD Bracket, Power Supply Connector, Mounting Clips, Screws and LCD Display Repair

Order each part separately is available

6AV2124-0GC01-0AX0 Siemens TP700 Comfort Touchscreen Glass, Overlay, Enclosure, Mounting Clips, Power Supply Connector, LCD Bracket, Case Gasket, Screws and LCD Display Repair Replacement

SIMATIC 6AV2124-0GC01-0AX0 HMI TP700 Comfort, Comfort Panel, Touch operation, 7"widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V11 .

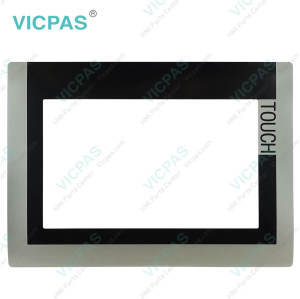

6AV2124-0GC01-0AX0 Siemens TP700 Comfort HMI part includes a touch panel, protective film mask, Power Supply Connector, Case Gasket, Mounting Clips, Screws, LCD Bracket, Housing and display, which is part of the Simatic HMI TP700 PanelView Standard terminal series. It can be used for repairing old operator panels. The Siemens TP700 panel is designed with TFT LCD, in contrast to passive-matrix LCDs or simple, direct-driven LCDs with a few segments. It has a 7-inch display with a resolution of 800 x 480px, which makes it ideal for applications in brightly lit locations. Besides, the LED backlight of the display lasts for up to 80,000 hours at 25 centigrade.


SIMATIC HMI TP700 Comfort Panel with glass touch screen and powder-coated, UV-resistant aluminum front are designed for use in indoor and outdoor areas, for example, in the fields of oil and gas, Marine or Refrigeration Technology. All devices offer the same excellent functionality and are configured exclusively with the innovative Siemens TP700 HMI software, WinCC. The engineering software is integrated with the engineering framework, "Totally Integrated Automation Portal".


VICPAS supply 6AV2 124-0GC01-0AX0 Siemens TP700 comfort panel, Overlay, Enclosure, LCD Bracket, Case Gasket, Mounting Clips, Power Supply Connector, Screws and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.





Product Video:

The video below describes the product details of the 6AV2124-0GC01-0AX0 Siemens TP700 Comfort HMI parts, including touch screen panel, protective film, case cover with lcd display.



Specifications:

The table below describes the parameters of the 6AV2124-0GC01-0AX0 Siemens TP700 Comfort HMI Parts.

Part Number : 6AV2124-0GC01-0AX0
Product Line: Siemens TP700 Comfort
Display “ TFT-LCD dynamic color screen
Warranty: 365 days Warranty
Touchscreen: colour LCD display
Type of supply voltage DC
Language: Worldwide
Key Features: Touch screen support
Mounting position vertical
Active power input, typ.: 12 W


Related Simatic TP700 Comfort Part No. :

Siemens TP700 Comfort Description Inventory status
6AG1124-0GC01-4AX0 SIPLUS HMI TP700 COMFORT In Stock
6AV2144-8GC10-0AA0 SIMATIC HMI TP700 COMFORT INOX In Stock
6AV2124-0GC01-0AX0 SIMATIC HMI TP700 COMFORT Available Now
6AG2124-0GC13-1AX0 SIPLUS HMI TP700 OUTDOOR T1 RAIL In Stock
6AV2143-6GB00-0AA0 SIMATIC HMI TP700 Basic OEM Available Now
6AV2124-0GC13-0AX0 SIMATIC HMI TP700 COMFORT OUTDOOR In Stock
6AV2124-5GC00-0WF0 SIMATIC HMI TP700 Comfort Comfort Panel In Stock
6AG1124-0GC13-2AX0 SIPLUS HMI TP700 Comfort Outdoor conformal In Stock
SIMATIC HMI TP700 Co Description Inventory status

Siemens TP700 Comfort HMI Manuals PDF Download:

  • 6AV2124-0GC01-0AX0 HMI TP700 Comfort datasheet manual pdf
  • Siemens Simatic TP700 Comfort HMI manual


  • FAQ:

    Question: Which software for Siemens TP700 Comfort programming software?

    Answer:WinCC.WinCC (TIA Portal) is an engineering software for configuring SIMATIC Panels, SIMATIC Industrial PCs, and Standard PCs with the WinCC Runtime Advanced or the SCADA System.WinCC Runtime Professional visualization software.WinCC (TIA Portal) is available in four editions, depending on the configurable operator control.


    Question: What is the size of Siemens TP700 touch panel??

    Answer:The Siemens TP700 Comfort TouchScreen is 7-inch.It is 169 millimeter long and 155 millimeters wide.
