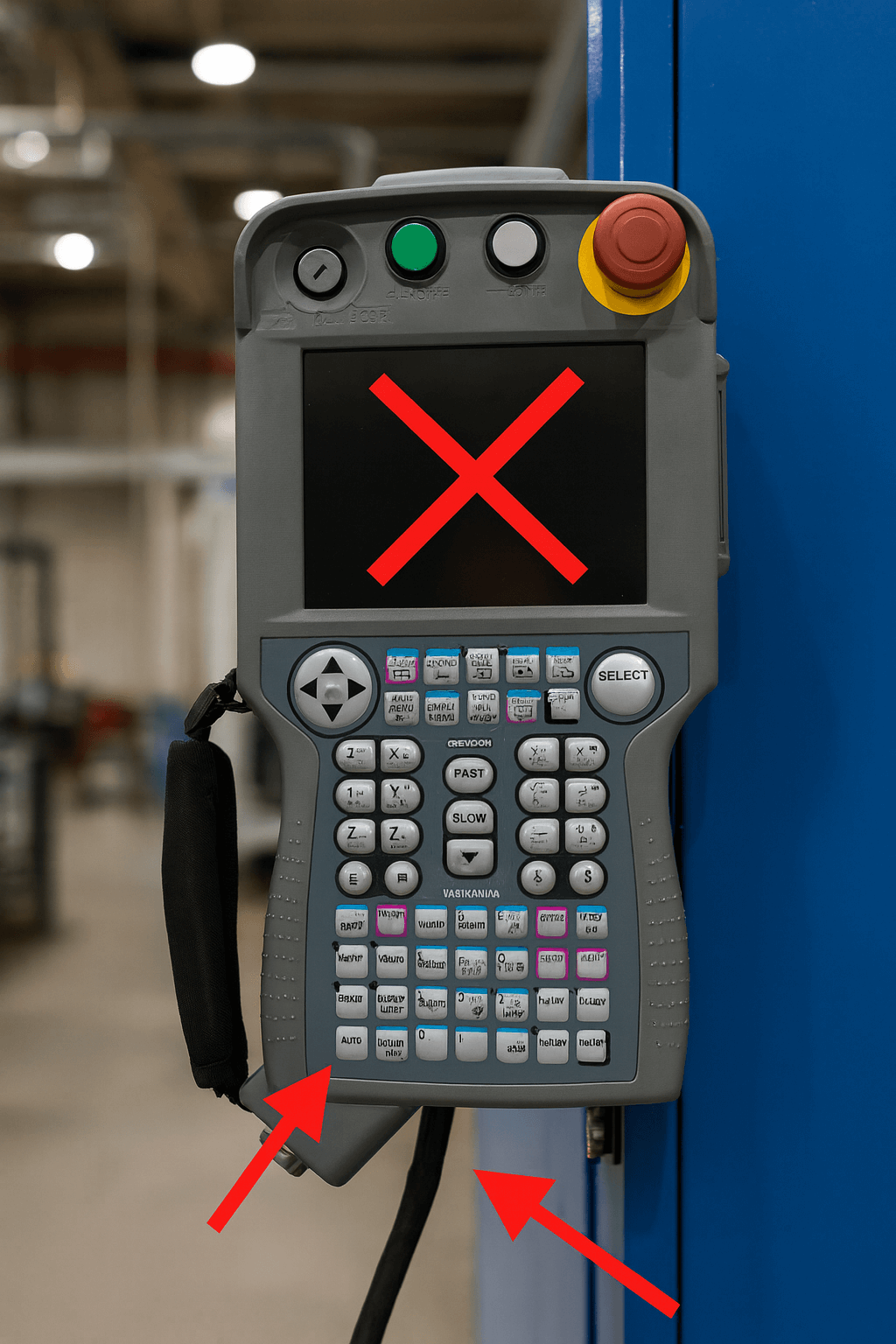

Troubleshooting Yaskawa DX200 Teach Pendant Issues: Won't Turn On or Respond?

As a leading supplier of industrial automation components, Vicpas has over a decade of hands-on experience servicing Yaskawa robotic systems, including the reliable Yaskawa DX200 Teach Pendant. If your Yaskawa DX200 Teach Pendant suddenly refuses to power on or respond, it can halt production lines and frustrate operators. Drawing from official Yaskawa documentation, real-world forum insights, and our expertise in HMI and robotics parts, this guide provides a comprehensive, step-by-step troubleshooting approach.

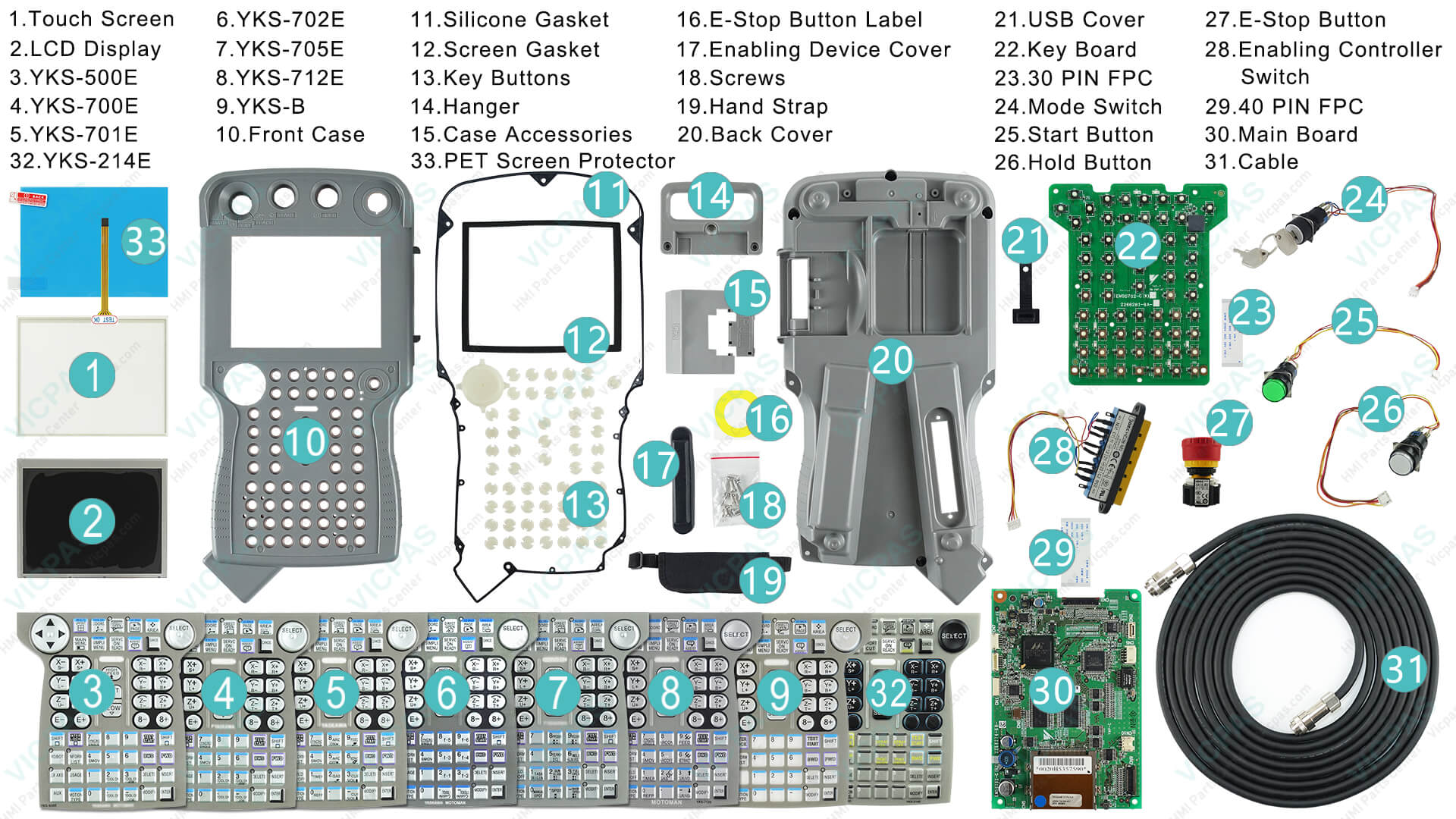

Vicpas specializes in high-quality Yaskawa DX200 Teach Pendant replacements and repair services, ensuring minimal downtime for your operations. Explore our DX200-compatible parts here

Common Causes of Yaskawa DX200 Teach Pendant Power or Response Failures

The Yaskawa DX200 Teach Pendant (model JZRCR-YPP-21-1) is a robust interface, but issues like "no display" or "controller-pendant connection failed" often stem from hardware, power, or communication glitches. Based on official Yaskawa maintenance manuals, here are the most frequent culprits:

• Power Supply Problems: Faulty control power units (e.g., JZNC-YPS21-E) or blown fuses (10A/250V) can prevent the pendant from receiving 24V DC. Alarms like 1683 (DC 24V Power Supply Failure) or 4778 (24V Voltage Error) signal this.
• Cable and Connection Issues: Loose or damaged cables (e.g., YPS-CN154 or Ethernet links) disrupt communication, triggering "Pendant Disconnected" messages.
• Battery or Board Failures: A weak memory battery (ER6VC3N, 3.6V) or YCP21/YIF01 board errors cause alarms like 0790 (Memory Battery Weak) or 165293 (YIF01 Board Failure).
• Software/Configuration Glitches: Mismatched software versions or CF card errors lead to non-response, especially during job loading.

Step-by-Step Troubleshooting Guide for Your Yaskawa DX200 Teach Pendant

Follow this structured process, aligned with Yaskawa's installation and operation guidelines, to safely revive your Yaskawa DX200 Teach Pendant. Always prioritize safety: Disconnect main power and follow lockout/tagout procedures.

Step 1: Basic Power Cycle and Visual Inspection

• Power off the DX200 controller via the main switch and wait 5 minutes to discharge capacitors.
• Inspect the Yaskawa DX200 Teach Pendant for physical damage, loose cables (e.g., YCP21-CN105), and secure mounting on the cabinet hook.
• Reconnect and power on: Check the green SOURCE LED on the YPS unit. If off, test primary voltage (200V ±10-15%).
• Expected Outcome: If the display lights up, proceed to job testing.

Step 2: Check Alarms and Error Messages

• Access the ALARM HISTORY window on the controller (if accessible) for codes like 0020 [50] (CPU Communication Error) or 4744 (Enable Switch Issue).
• For "Controller <-> Pendant Connection Failed," verify Ethernet and YSF22-CN213 connections.
• Reset minor alarms via the pendant's MENU > ALARM/MSG > RESET. For major alarms (e.g., 1200 High Temperature), cool the cabinet and retry.

Step 3: Hardware Diagnostics

• Battery Test: Replace the ER6VC3N if Alarm 0790 appears—our Vicpas stock ensures quick swaps.
• Board Checks: Inspect YCP21 LEDs (LED1/LED2 for boot status). If faulty, save CMOS.BIN data before replacement.
• Cabling Verification: Use a multimeter on WAGO connectors for continuity; replace damaged leads like YFC22-81.
• In integrated setups (e.g., ROS or RoboDK), confirm IP (not 127.0.0.1 for external links) to rule out network-induced non-response.

Step 4: Advanced Software Fixes

• Reload jobs incrementally via text editor (e.g., Notepad++) to isolate syntax errors causing disconnects.
• Enter maintenance mode to load backup CMOS.BIN or reinitialize CF cards.

If these steps fail, it may indicate a deeper board failure—contact professionals for on-site diagnostics.

Real-World Experiences: Lessons from the Field

Community forums highlight practical wins. In one Robot-Forum thread, a user fixed a Yaskawa DX200 Teach Pendant "disconnected" error by correcting job syntax (e.g., using IFTHENEXP instead of IFTHEN). Another case involved a frozen pendant during RoboDK integration, resolved by verifying external IP configurations.

Preventive Maintenance for Long-Term Reliability

• Schedule quarterly checks: Clean fans, inspect fuses, and test batteries per Yaskawa's service manual.
• Use protective covers and secure cabling to prevent wear.
• Update software via official channels to match controller versions.

Vicpas offers maintenance kits tailored for Yaskawa DX200 Teach Pendant, including fuses and batteries—browse our catalog for seamless compatibility.

When DIY Isn't Enough: Partner with Vicpas Experts

By following this guide, you'll minimize disruptions and extend your Yaskawa DX200 Teach Pendant's lifespan. Questions? Comment below or reach out to Vicpas—your trusted partner in industrial automation. Stay productive!
