Troubleshooting Common Problems with Siemens KTP700 HMI

As an industrial automation enthusiast or technician, dealing with the Siemens KTP700 HMI can be rewarding, but like any sophisticated device, it comes with its share of challenges. The Siemens KTP700, a reliable Basic HMI panel widely used in PLC systems, often encounters issues related to startup, communication, freezing, and display functionality. In this comprehensive guide, we’ll dive into troubleshooting these common problems to help you get your system back online quickly. Drawing from real-world experiences shared in online forums and expert insights, we’ll provide step-by-step solutions while highlighting how Vicpas, a leading provider of HMI replacement parts with over 20 years of expertise, can support your needs.

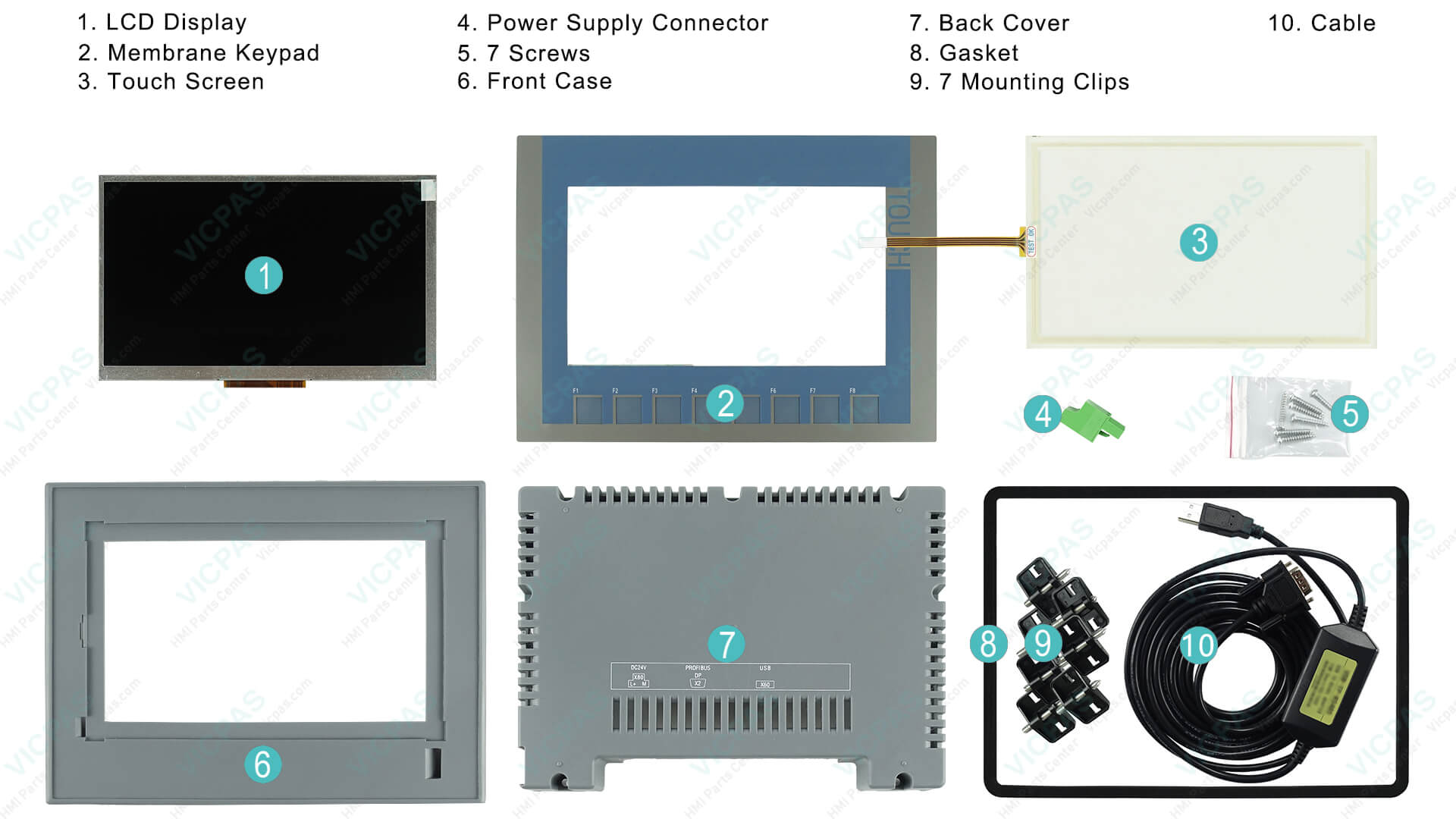

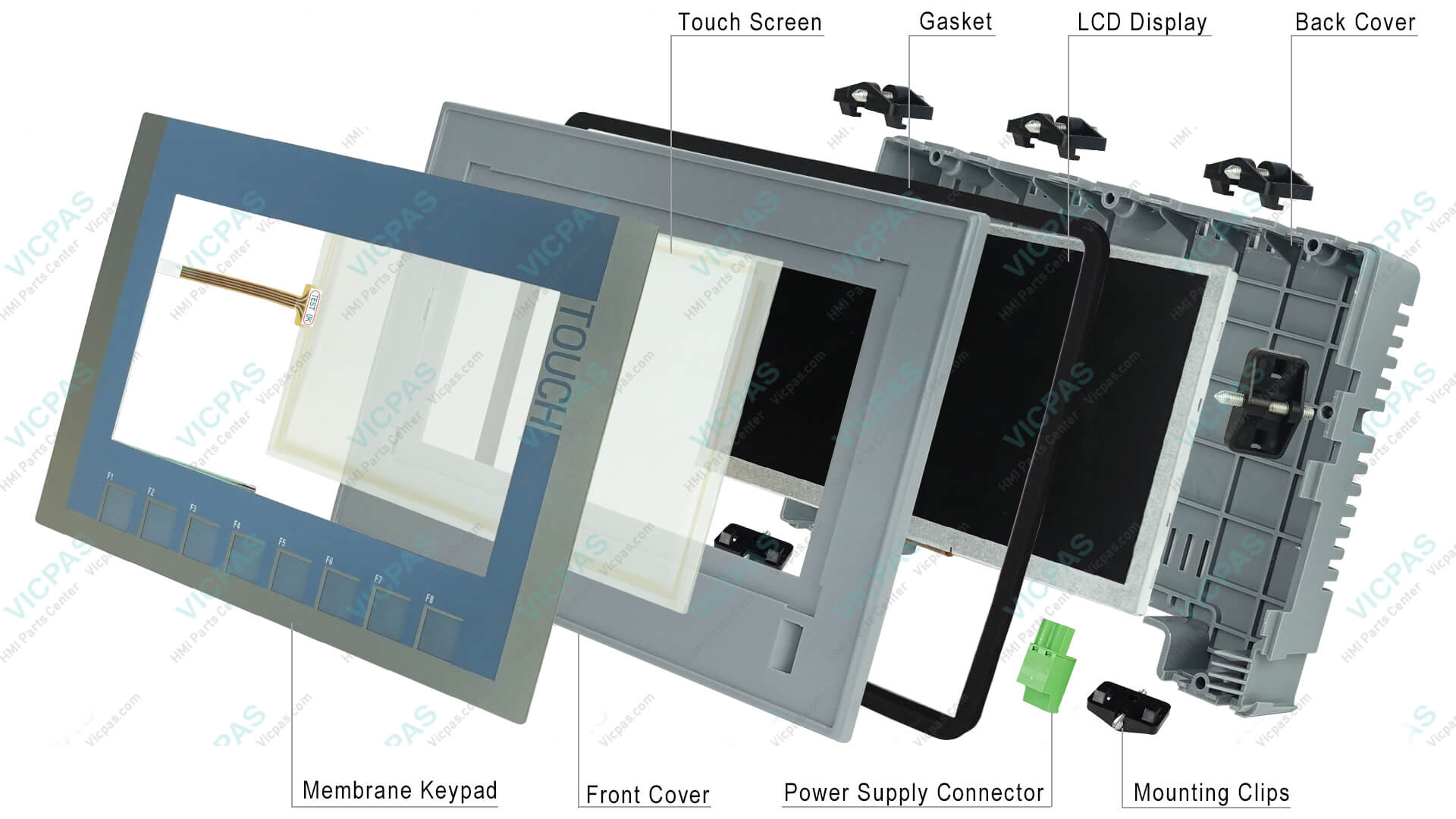

At Vicpas, we specialize in high-quality touchscreen panels, membranes, and accessories for Siemens HMIs, including the KTP700 series. Our customized solutions ensure compatibility and durability, backed by a 1-year warranty and fast worldwide shipping. If your troubleshooting points to hardware failure, explore our KTP700-compatible products at Vicpas KTP700 Parts for reliable replacements.

Understanding the Siemens KTP700 HMI

The Siemens KTP700 Basic is a 7-inch touchscreen HMI designed for seamless integration with PLCs like the S7-1200 series. It’s known for its user-friendly interface and robust performance in automation environments. However, age, firmware issues, or configuration errors can lead to downtime. Based on community discussions, common culprits include software glitches, power supply problems, and hardware wear. As SEO experts and HMI specialists at Vicpas, we emphasize proactive maintenance to optimize your Siemens KTP700’s lifespan and ranking in search results for related queries.

Common Problem 1: Stuck at Startup Screen

One frequent issue with the Siemens KTP700 is getting stuck at the startup or boot screen, often preventing project transfers or normal operation. This can stem from corrupted firmware, outdated OS, or hardware faults, especially in units over 5-10 years old.

Troubleshooting Steps:

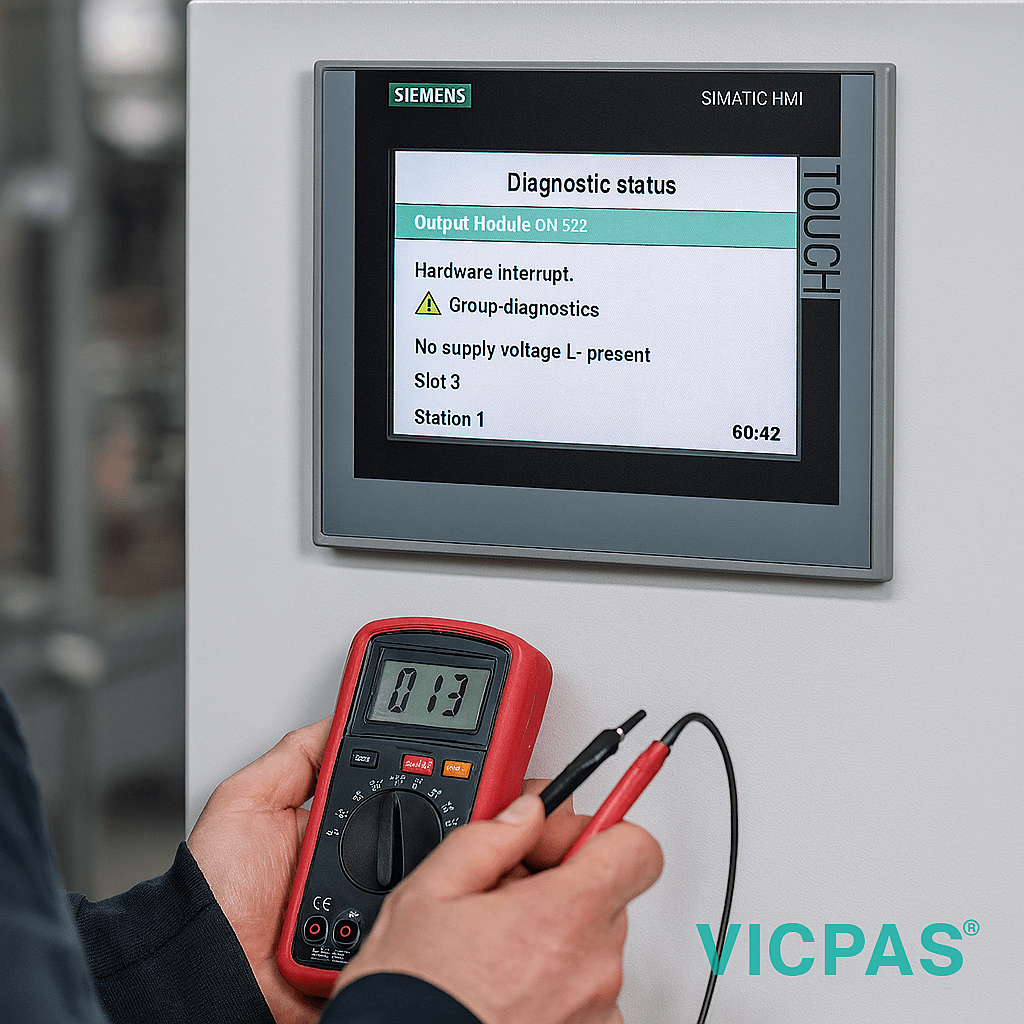

1. Power Cycle and Basic Checks: Start by restarting the 24VDC power supply. Ensure all connections are secure and there’s no voltage fluctuation.
2. OS Reinstallation: Use WinCC Flexible or TIA Portal to reinstall the operating system. This often resolves boot loops.
3. USB Recovery: Prepare a USB drive with the recovery image from Siemens support. Insert it into the HMI and follow the manual for restoration. Note: If USB recovery fails, it may indicate a deeper hardware issue.
4. Firmware Update: Check for bugs in revisions like V13 or V14. Create a firmware rescue drive using official tools.

If these steps don’t work, the panel might need replacement parts. Vicpas offers compatible touchscreens and membranes for the Siemens KTP700, ensuring quick turnaround with no MOQ limits. Our engineers can customize solutions to match your exact model, like the 6AV2123-2GB03-0AX0. 6

Common Problem 2: Communication Problems with PLC (e.g., S7-1200)

Communication failures between the Siemens KTP700 and PLCs like the S7-1200 are common, manifesting as “no connection” errors or intermittent data transfer. This could be due to mismatched configurations, cable issues, or software incompatibilities.

Troubleshooting Steps:

1. Verify Connections: Check Ethernet or PROFIBUS cables for damage. Ensure IP addresses match in TIA Portal.
2. Configuration Review: In TIA Portal, confirm the HMI device settings align with the PLC’s. Use PPI protocol if applicable.
3. Firmware and Software Updates: Update both HMI and PLC firmware to compatible versions. Tools like ProSave can help rewrite firmware, though success varies.
4. Test with Backup: If replacing an older HMI (e.g., from VIPA to KTP700), upload configurations from a working unit via USB.

For persistent issues, hardware degradation in the communication interface might be the cause. At Vicpas, we provide high-quality replacement HMIs and parts compatible with Siemens KTP700, sourced from trusted partners like Elo and AMT. Contact our team for expert advice and same-day shipping options.

Common Problem 3: HMI Freezing or Unresponsiveness

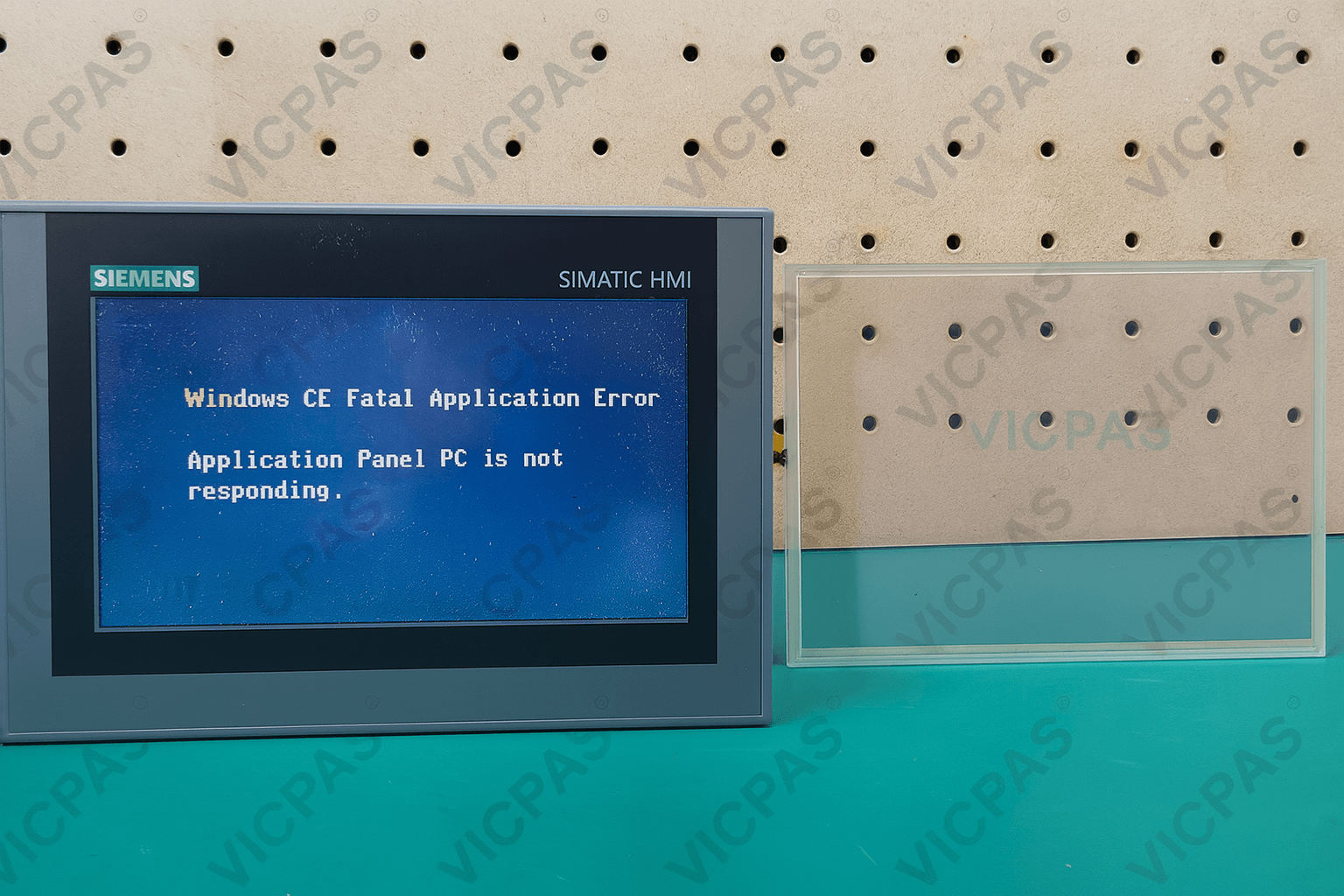

Freezing is another prevalent complaint, where the Siemens KTP700 becomes unresponsive during operation or project loading. This is often linked to age, memory overload, or environmental factors like dust and heat.

Troubleshooting Steps:

1. Restart and Monitor: Power cycle the unit and observe for patterns. Temporary fixes like restarting the power supply can indicate underlying issues.
2. System Restore: Use a USB backup or Siemens manual guidelines to restore factory settings.
3. Firmware Rescue: For known bugs, apply a rescue drive. Avoid overloading the HMI with complex projects.
4. Hardware Inspection: Clean vents and check for overheating. If the touchscreen is faulty, it may cause perceived freezing.

Users report success with these methods, but if your unit is aging, consider upgrading components. 6 Vicpas specializes in touchscreen repairs and replacements for the Siemens KTP700, offering durable, responsive panels that enhance performance. Browse our catalog at Vicpas KTP700 Parts for options tailored to your setup.

Common Problem 4: Display and Timestamp Issues

Display problems, such as blank screens or incorrect visuals, and challenges with timestamp functions (e.g., logging process start/end times) can disrupt operations. These often arise from programming errors or hardware faults.

Troubleshooting Steps:

1. Timestamp Configuration: In the PLC (e.g., S7-1200), use DTL datatype for timestamps. Implement functions like rd_loc_t to capture times when bits trigger.
2. HMI Clock Sync: Connect the HMI clock control to the PLC’s DTL time for accurate display.
3. Display Hardware Check: Test for backlight or touchscreen failures. Calibrate the screen via TIA Portal.
4. Program Upload: If replacing the HMI, upload from a similar unit and avoid modifying protected DBs without expertise.

For display-related hardware, Vicpas excels in providing OEM-quality membranes and touchscreens for the Siemens KTP700. Our 20+ years in HMI solutions ensure trustworthiness, with full technician support. 7

Preventive Maintenance and When to Seek Professional Help

To avoid these issues, regularly update firmware, back up configurations, and monitor environmental conditions. If troubleshooting doesn’t resolve the problem, it might be time for professional intervention. As a trusted partner in industrial HMI solutions, Vicpas offers comprehensive services, including custom plastic housings and urgent global shipping via DHL or UPS. With our strong supply chain and no minimum order requirements, we’re here to keep your Siemens KTP700 running smoothly.

Ready to upgrade or repair? Visit Vicpas HMI Parts Center today for expert consultations and explore our Siemens KTP700 products at Vicpas KTP700 Parts. Our commitment to quality and customer satisfaction positions us as your go-to source for reliable HMI components.
