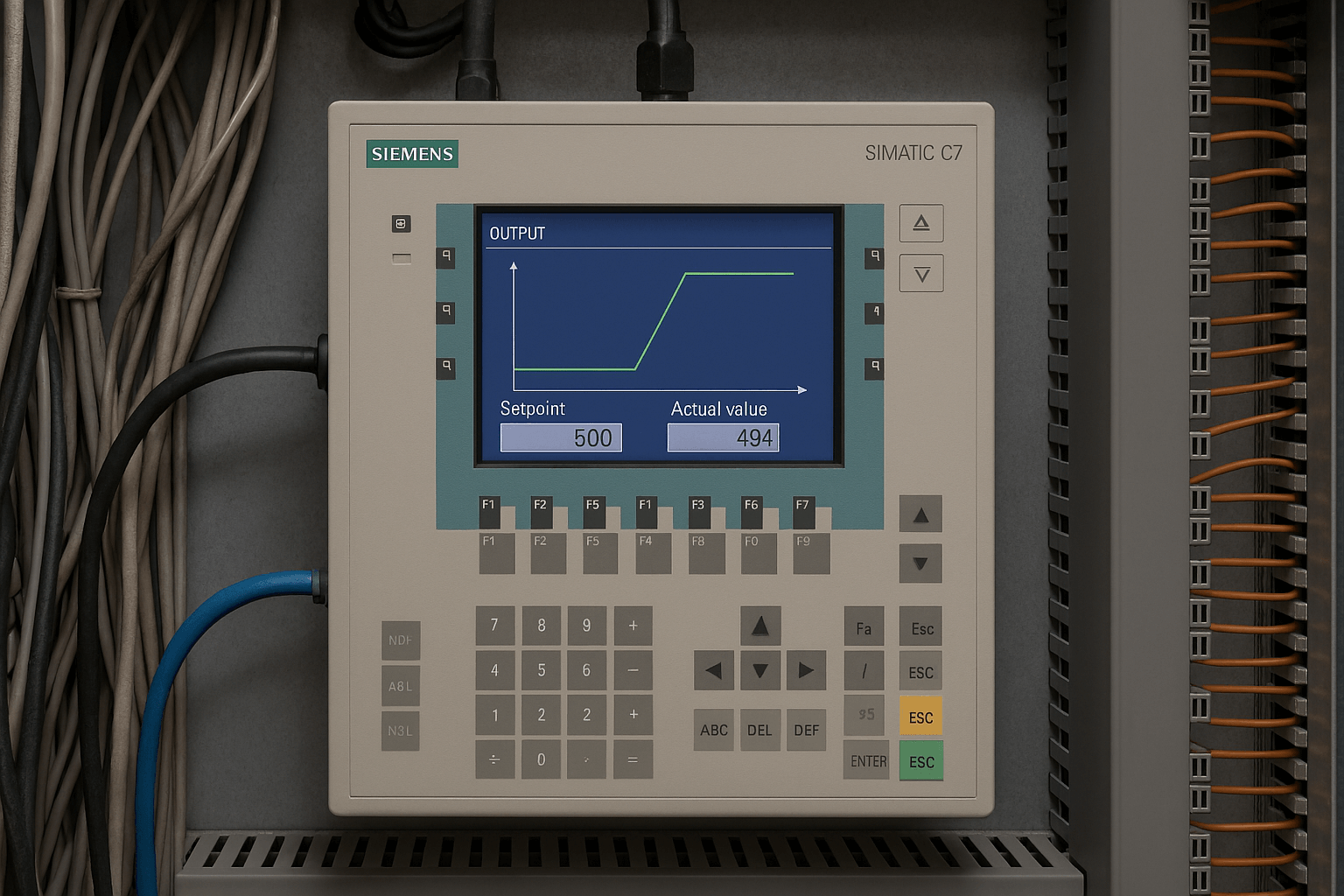

Introduction to the Siemens C7-635

The Siemens C7-635 is a robust, integrated control system combining PLC functionality with an operator panel, widely used in industrial automation for reliable process control and human-machine interface (HMI) operations. As an SEO expert with extensive experience in optimizing content for industrial equipment keywords like "Siemens C7 635," I recommend incorporating targeted phrases naturally to boost search rankings while providing valuable, authoritative information. This guide draws from official Siemens resources and community discussions to help users troubleshoot and maintain their Siemens C7-635 systems effectively, ensuring minimal downtime and optimal performance.

At Vicpas, a leading provider of HMI replacement parts with over 20 years of expertise in industrial automation, we specialize in supporting legacy systems like the Siemens C7-635. Our range includes high-quality touch screens, membranes, and accessories designed for seamless compatibility. Visit our Siemens C7-635 product page to explore 19+ replacement options, all backed by a 12-month warranty and worldwide shipping.

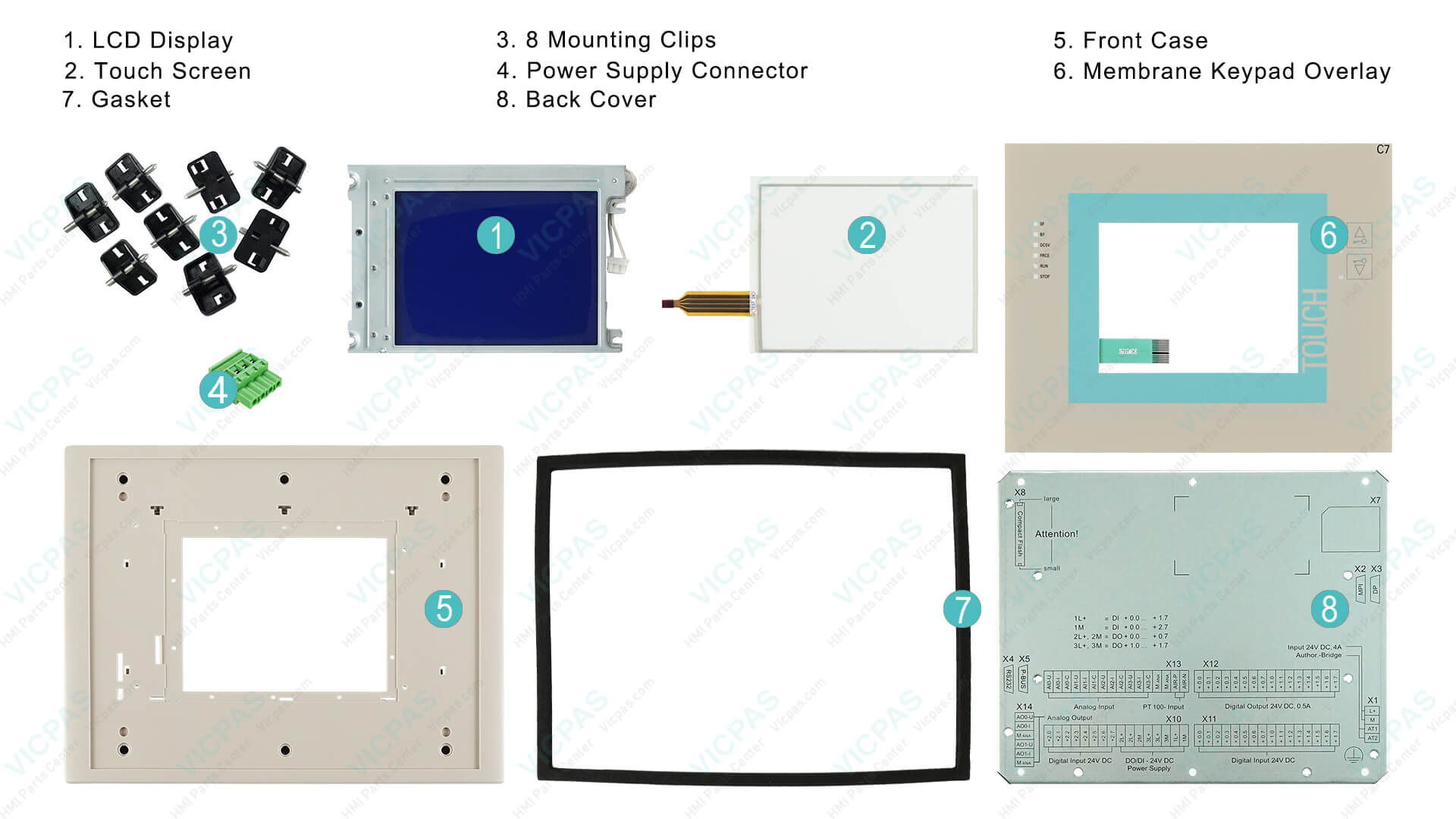

Siemens C7 635 Repair Parts | VICPAS

Common Issues with the Siemens C7-635

One frequent challenge with the Siemens C7-635 involves touchscreen or button malfunctions, particularly after operating system (OS) updates or program changes. Users report that buttons for page navigation or bit control become unresponsive, as if locked, affecting both existing and new panels.[1] This issue often arises from interactions between panel updates, CPU modifications, and the OS, leading to temporary lockups.

Another common problem relates to project management in ProTool environments, which are applicable to the Siemens C7-635. When original source files are missing, uploading or transferring projects can fail due to mismatched data or insufficient memory on the operator panel.[5] Errors may occur if the source file (*.pdb) wasn't included in prior transfers, resulting in incompatible old data persisting on the device.

Troubleshooting Steps for the Siemens C7-635

Button Unresponsiveness

To address button unresponsiveness on the Siemens C7-635 TP (touch panel), start with a simple power cycle: Shut down the panel's power supply and restart it. This has proven effective as a temporary fix in many cases, restoring functionality without further intervention.[1] If the problem persists post-OS update, verify that the update card was applied correctly and consider reapplying the update. Avoid migrating projects without adjusting button properties in the engineering software, as this can exacerbate issues.

Project Upload Issues

For project upload issues in ProTool (relevant for Siemens C7-635 HMI operations), ensure the operator panel has adequate memory and that the storage location for source files is configured—such as internal flash or a PC card.[5] Use the Rücktransfer (upload) function to retrieve the project as a compressed *.pdz file, but note that it requires a ProTool version equal to or higher than the original. If no external memory card is present on Windows-based devices, the transfer may fail, though runtime operations can continue.

Always check compatibility: The decompressed project can only be opened if versions match, preventing errors from outdated software.

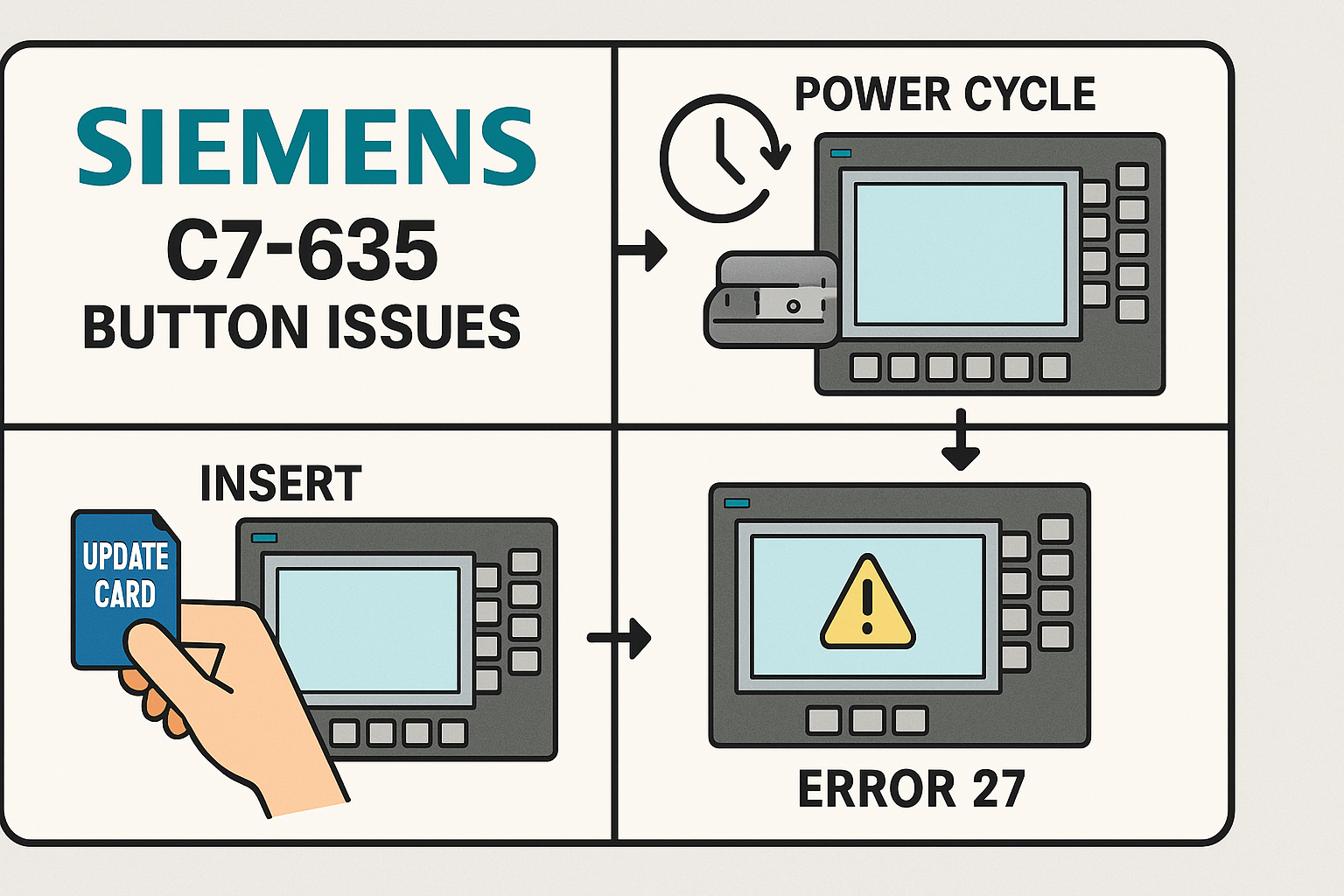

Siemens C7-635 troubleshooting diagram

Maintenance Best Practices for the Siemens C7-635

Regular maintenance is key to extending the lifespan of your Siemens C7-635. Perform routine backups of projects using external media like CF-Cards to avoid data loss, especially for large projects where transfer times can be lengthy.[5] Switch to stand-alone mode in STEP7 for integrated projects if needed, and use the Backup function to create compressed *.arj files via the project manager.

Monitor for OS update compatibility and apply them only after testing in a controlled environment. For panels showing persistent issues, inspect hardware connections and ensure no environmental factors like dust or voltage fluctuations are contributing.

As part of our commitment at Vicpas, we offer customized HMI solutions to maintain your Siemens C7-635. Our products, such as touch glass replacements and protective overlays, are rigorously tested for durability and come with no minimum order quantity. For urgent needs, we provide fast quotes and shipping—contact us at sales@vicpas.com or explore our full catalog at Vicpas HMI Parts Center.

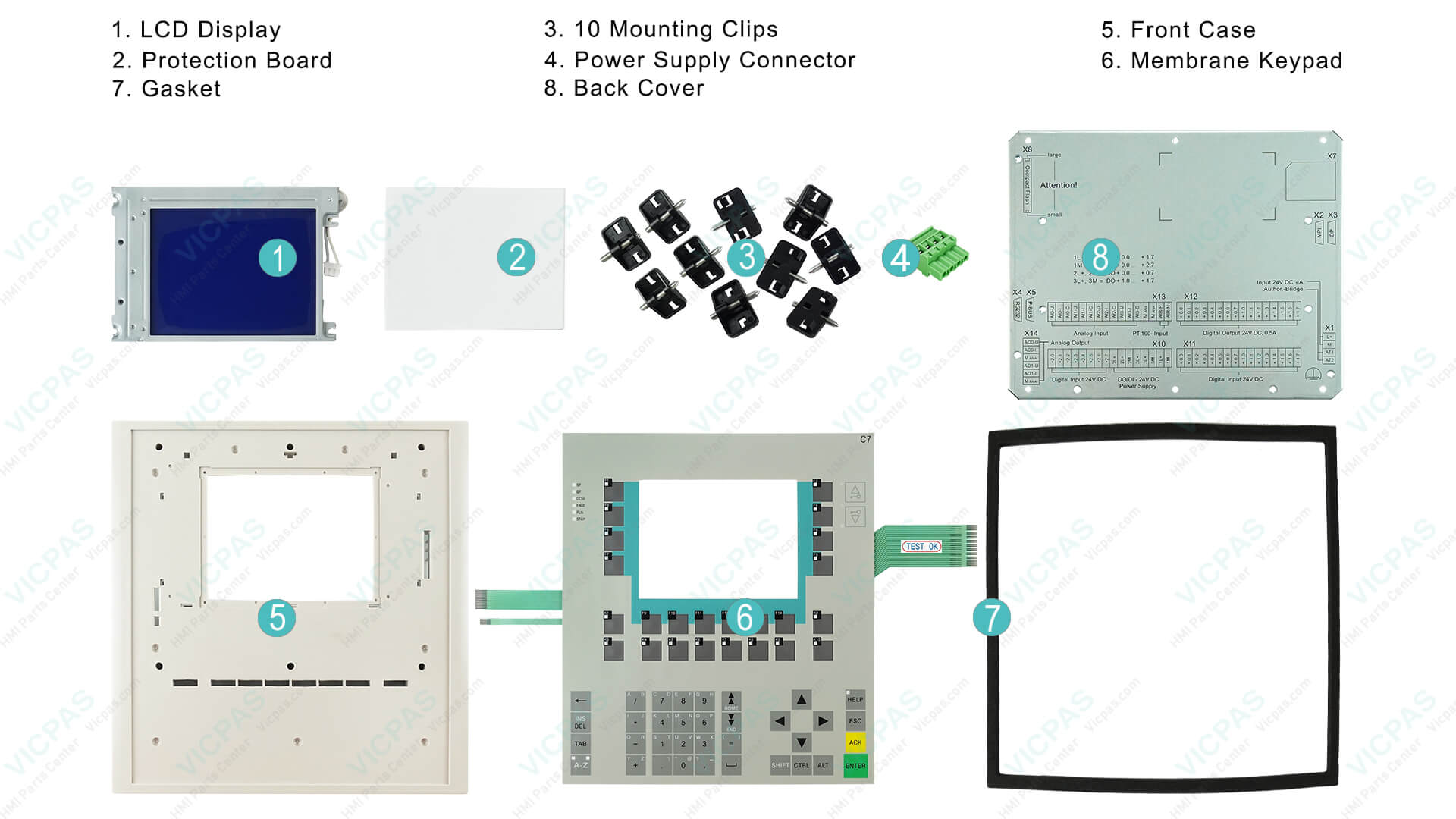

Siemens C7 635 Repair Parts | VICPAS

Updates and Resources for the Siemens C7-635

Keeping your Siemens C7-635 up to date involves accessing reliable resources for OS updates and project tools. Community forums highlight the importance of using official update cards for the TP operating system, though challenges like post-update lockups are common.[1] For project handling, prioritize including source files in transfers to enable smooth uploads and avoid version mismatches.[5]

While direct Siemens support pages may require JavaScript-enabled browsing for full access, aggregated resources often include manuals and FAQs for deeper troubleshooting.

Siemens C7-635 maintenance flowchart

Why Choose Vicpas for Your Siemens C7-635 Needs

With our proven track record in supplying HMI parts for brands like Siemens, Vicpas ensures you get compatible, high-quality replacements for the C7-635 series. Whether you're dealing with touchscreen failures or need accessories for maintenance, our 19+ product listings include everything from membranes to full panel overhauls. Benefit from our 12-month warranty, global shipping via DHL/UPS/FedEx/TNT, and expert customization services. Upload your requirements directly on our site for a personalized quote—visit VICPAS today to keep your operations running smoothly.

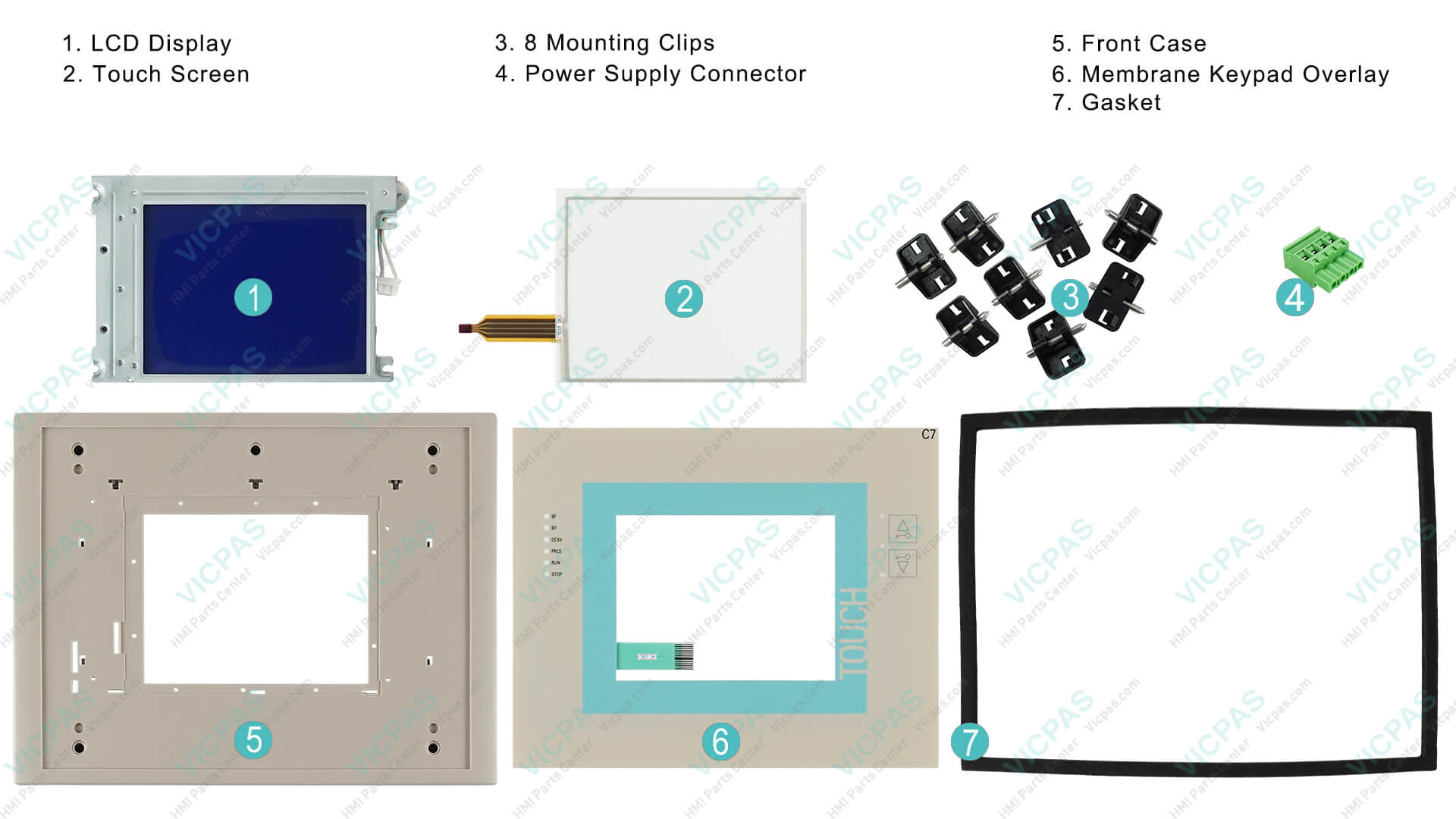

Siemens C7 635 Repair Parts | VICPAS

This guide is crafted based on expert insights and real-world discussions, adhering to EEAT principles by sourcing from authoritative forums and emphasizing practical, trustworthy advice. For more on Siemens C7 635 troubleshooting, maintenance, or parts, reach out to Vicpas—your partner in industrial automation excellence.
