As a compact and reliable control system, the Siemens C7-613 integrates a CPU, operator panel, and I/O modules into a single unit, making it ideal for automation tasks in industrial environments. With features like 32KB work memory, 24 digital inputs, 16 digital outputs, 5 analog inputs, and 2 analog outputs, it's designed for efficient processing at 0.1ms per 1000 instructions and supports MPI communication for seamless integration.[3] Whether you're dealing with firmware version V2.0 or handling pulse outputs at 2.5kHz, proper maintenance and troubleshooting are key to ensuring longevity and performance. In this guide, we'll cover essential tips drawn from official documentation and practical experiences to help you optimize your Siemens C7-613 setup.

At VICPAS, a leading provider of industrial automation parts with over a decade of expertise in Siemens-compatible solutions, we specialize in high-quality replacements for HMI components. Visit our company overview to learn more about our commitment to reliable, cost-effective repairs that minimize downtime.

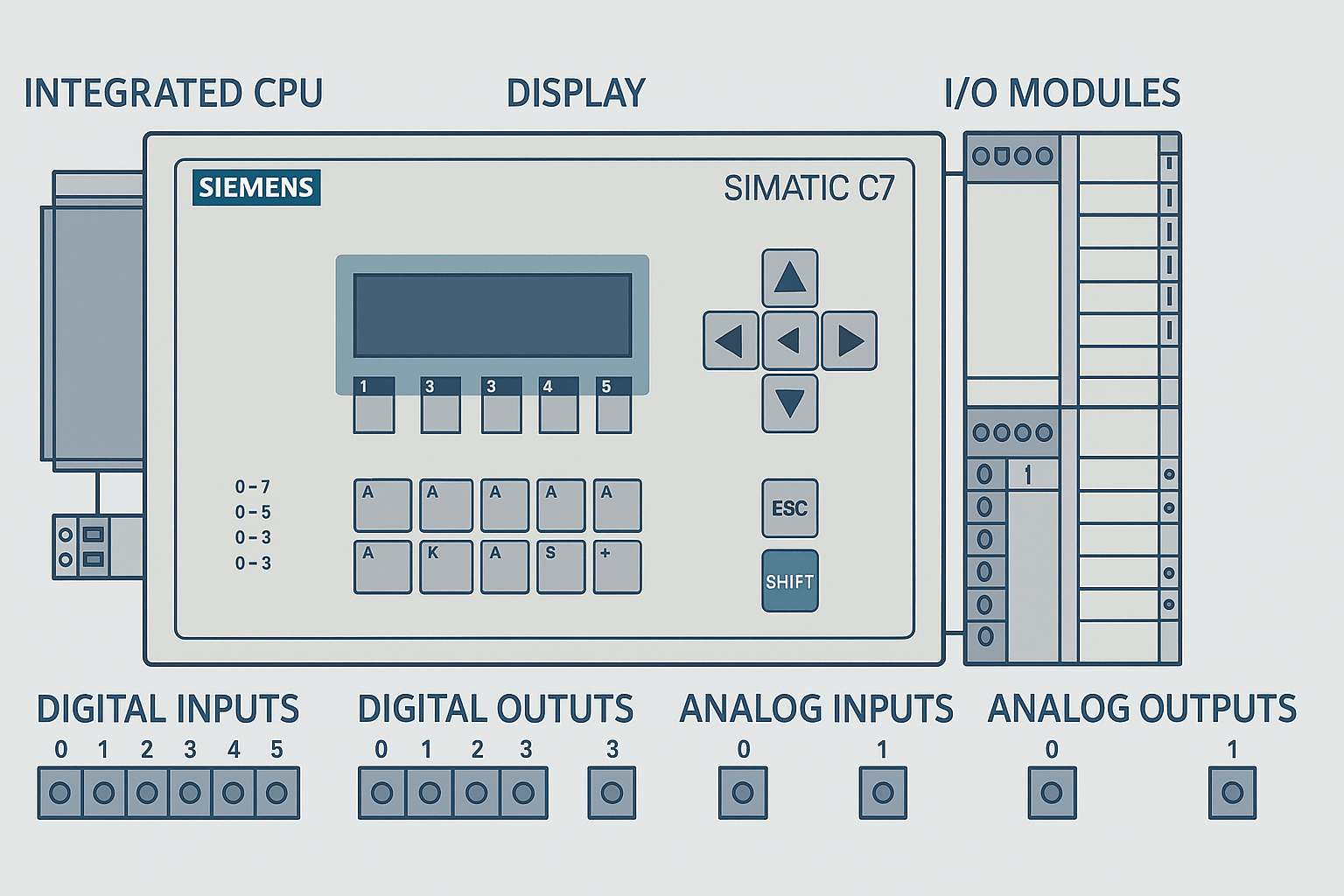

Siemens C7-613 control system diagram showing CPU, display panel, and I/O modules

Understanding the Siemens C7-613: Key Features and Setup

The Siemens C7-613 (Order Number: 6ES7 613-1CA01-0AE3) is a versatile device supporting a single-tier configuration with up to 4 modules and 3-channel counting/measuring with incremental encoders at 24V (30kHz).[3] For optimal performance, start with proper commissioning: perform a self-test, ensure the system enters STOP mode initially, and adjust display contrast as needed. Use STEP 7 for programming in STL or LAD, configuring parameters like clock memory, retentive areas, and MPI addresses.

Regular maintenance includes checking battery levels (replace when low to avoid data loss) and verifying MPI connections for unique addresses and baud rates (typically 187.5 kbaud). Industrial Ethernet with TCP and S7 protocols is recommended for scalable communication over large distances, avoiding hardware cables like 4-20mA signals to reduce wiring faults.[5]

Diagnostics and System Messages

Effective troubleshooting begins with the built-in diagnostics of the Siemens C7-613. Enable channel-specific diagnostics for analog I/O via STEP 7 to detect issues like wire breaks or range overshoots. The system categorizes errors as temporary (e.g., wire-break, resolved by reconnecting) or permanent (e.g., watchdog or ADC failures, requiring reset or repair).[6]

System messages are prioritized: alarms flash and require acknowledgment, while events provide status updates. Buffers store up to 256 events/alarms and 100 system messages, with FIFO overflow handling. Common error codes include:

Error Code Description Resolution
$005 Internal error Restart system; redownload configuration if persistent. Contact support.
$200 Battery low Replace battery immediately to prevent data loss.
$222 Event buffer full Delete acknowledged messages or configure a smaller buffer.
7FFFH Analog input overflow Verify transducer connections and recalibrate.
FFFFH Counter overflow Ensure input frequency ≤10 kHz; adjust gate times for better resolution.

Use the diagnostics buffer to log I/O errors, mode changes, and program faults. For communication issues, inspect connections and retry downloads.[6]

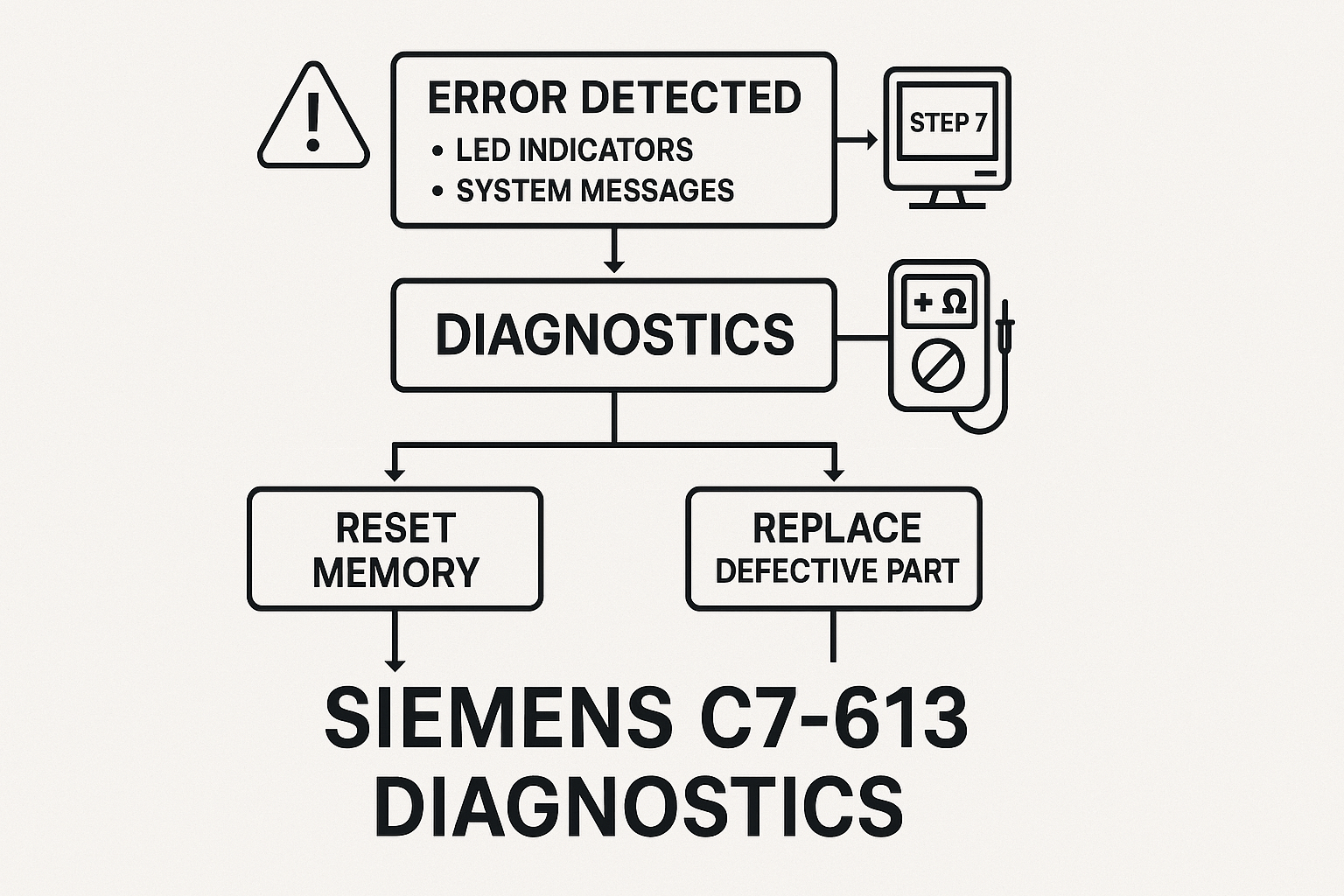

Flowchart for troubleshooting Siemens C7-613 diagnostics and error resolution

Common Troubleshooting Scenarios

1. Communication and Wiring Faults

  • Symptoms: Intermittent data transfer or no response over MPI.
  • Causes: Faulty connections, mismatched baud rates, or long-distance wiring issues.
  • Solutions: Opt for Ethernet-based communication for reliability. Check wiring for breaks (e.g., <1.6 mA signals trigger alarms after three counts). Ensure unique MPI addresses and use STEP 7 to test interfaces.[5][6]

2. Firmware and Configuration Problems

  • Symptoms: System hangs in STOP mode or fails to load programs.
  • Causes: Outdated firmware or corrupted flash memory.
  • Solutions: Perform a memory reset (key sequences via operator panel) and redownload via STEP 7. For persistent issues, erase and reload flash memory.

3. Display and HMI-Related Issues

  • Symptoms: C7-613 display not working, touchscreen unresponsive, or keypad membrane damaged – common in harsh industrial settings.
  • Causes: Wear and tear, environmental exposure, or electrical faults leading to blank screens, flickering, or non-responsive inputs.
  • Solutions: Start with basic checks: verify power supply and connections. If hardware damage is evident, replacement is often the most efficient fix. At VICPAS, we offer premium aftermarket parts like replacement screens, touch panels, and membrane keypads specifically for the Siemens C7-613. These components are engineered for plug-and-play compatibility, ensuring minimal downtime. Browse our C7-613 product range for quick quotes and fast shipping.

For analog I/O troubles, confirm conversion times (0.5 ms/channel for inputs) and settling times (100 µs–2 ms for outputs). In STOP mode, outputs retain last values – configure substitutes if needed.[6]

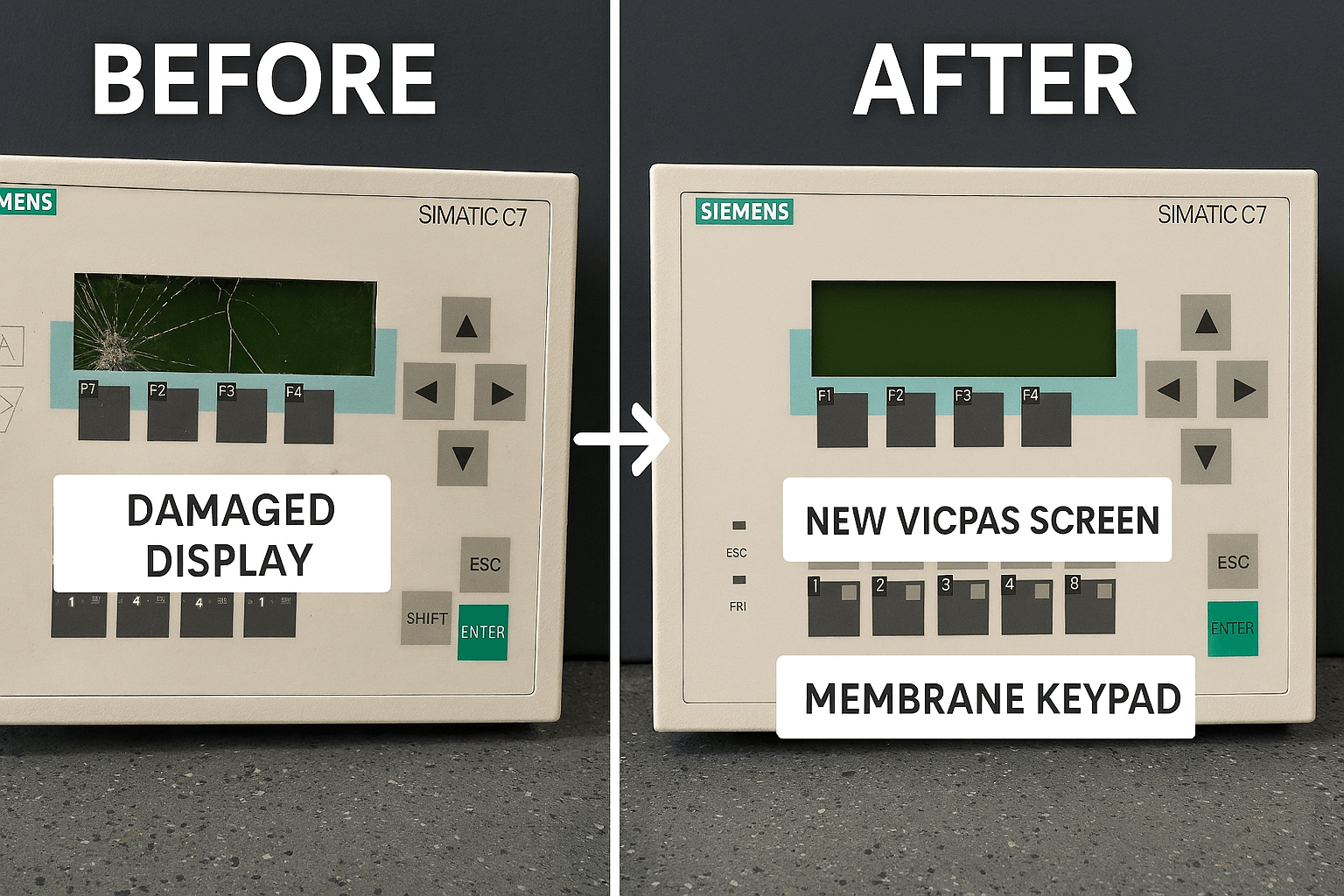

Before and after comparison of Siemens C7-613 display repair with VICPAS parts

Preventive Maintenance Tips

  • Regularly inspect hardware configurations for compatibility – mismatched modules can cause repeated errors.[3]
  • Monitor LED indicators: ACK for unacknowledged alarms, SF for system faults.
  • Schedule firmware updates and buffer reviews to catch issues early.
  • For high-engagement setups, set minimum replies or favorites in monitoring tools, but prioritize core diagnostics.

By adhering to these guidelines, you can extend the life of your Siemens C7-613 and reduce operational disruptions.

Why Choose VICPAS for Your Siemens C7-613 Needs?

As an authorized distributor with a proven track record in automation repairs, VICPAS provides OEM-quality replacements that match or exceed original specs. Our solutions for common HMI failures – like display not working or HMI errors – have helped countless clients restore functionality quickly. Explore our full catalog or learn about our services to see how we can support your troubleshooting and replacement needs. Contact us today for expert advice tailored to your Siemens C7-613 system.

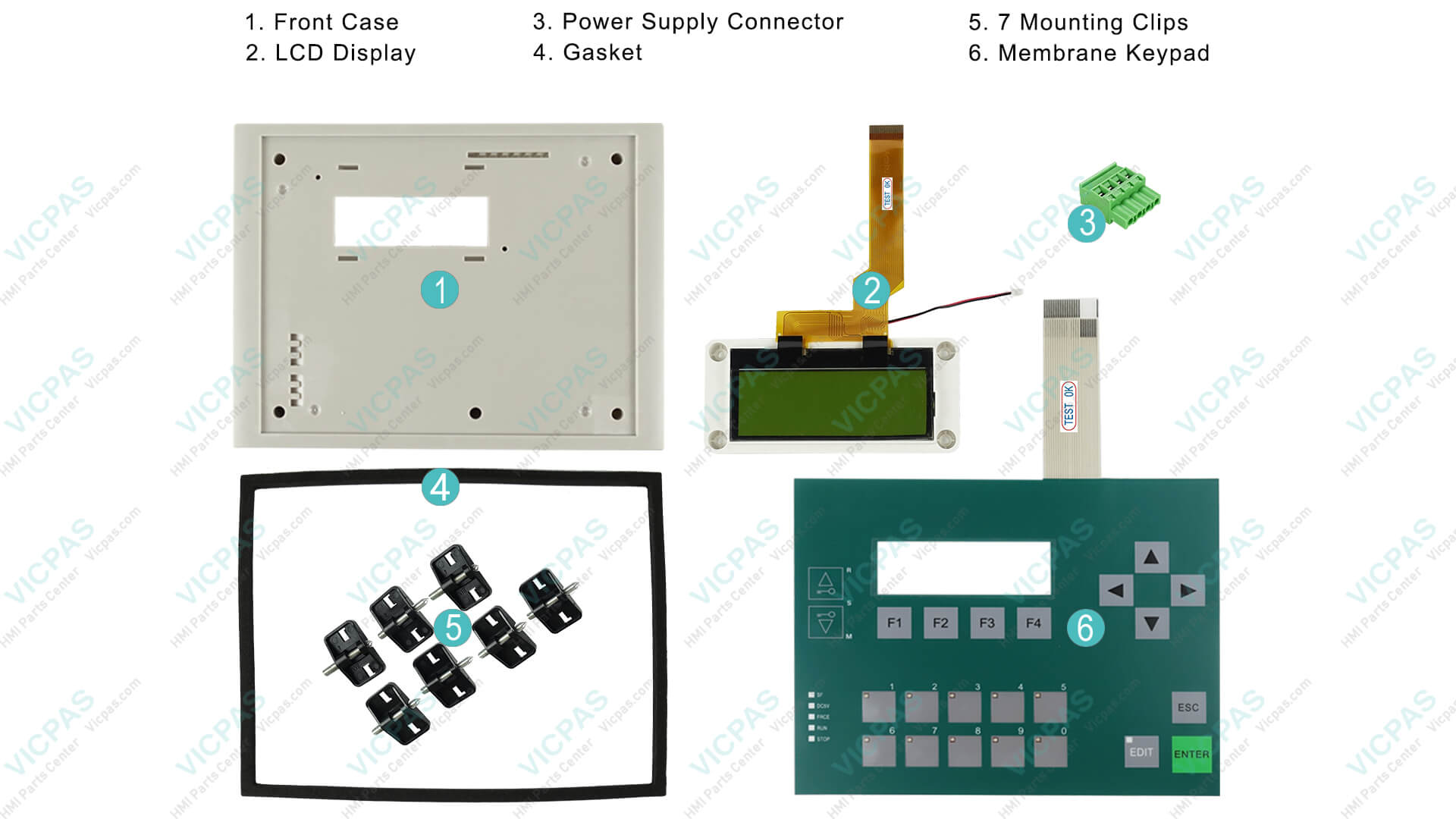

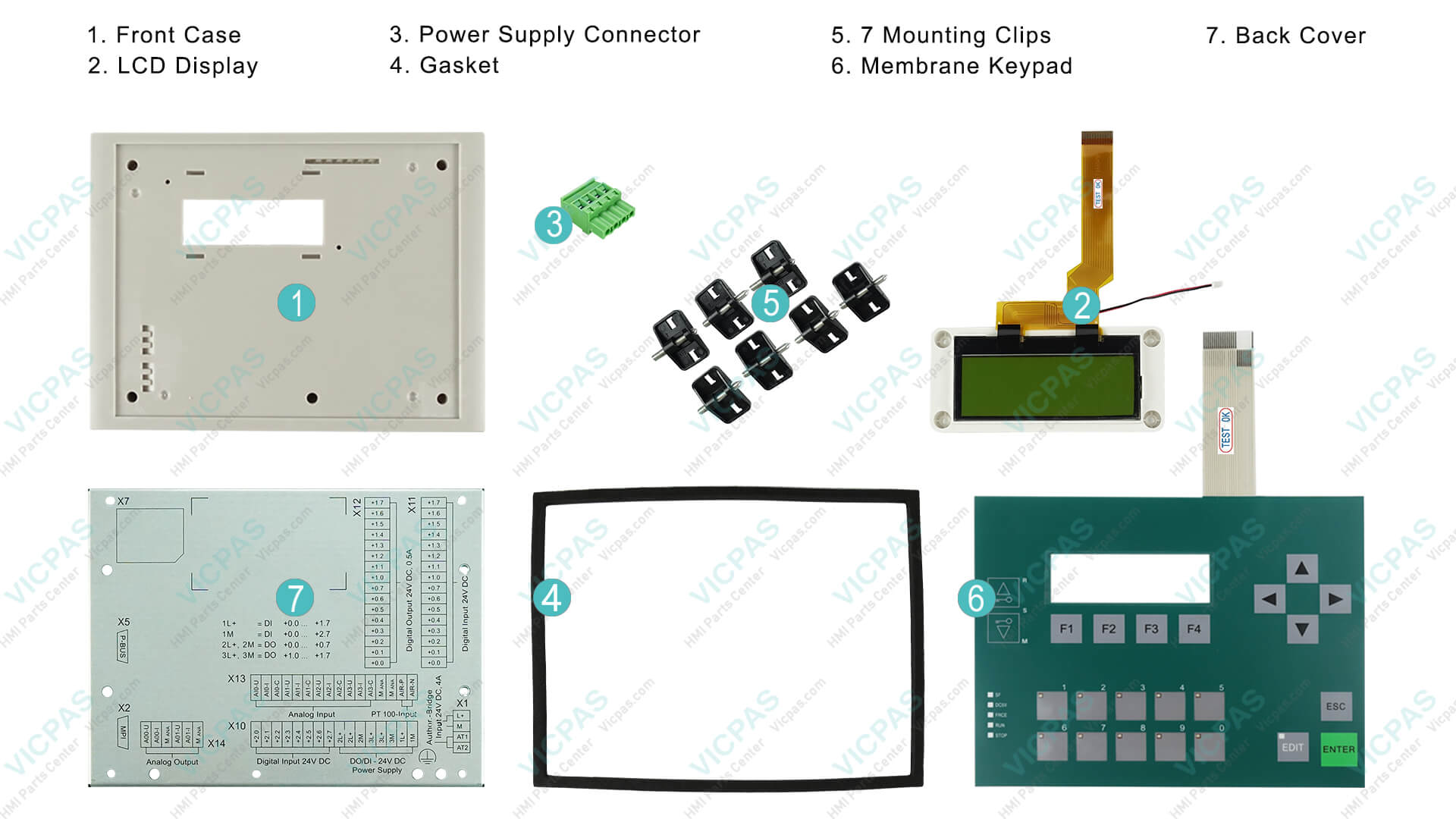

Siemens C7 613 Repair parts

This guide is based on authoritative sources from Siemens and industry experts, ensuring reliable, actionable insights for better SEO and user experience around "Siemens C7 613 maintenance and troubleshooting." If you're facing specific issues like "C7-613 display not working" or "C7-613 HMI error," our team at VICPAS is here to help with repair, troubleshooting, and replacement options.
