Introduction to TP900 Comfort Troubleshooting

The Siemens TP900 Comfort (6AV2124-0JC01-0AX0) is a high-performance Human Machine Interface (HMI) panel renowned for its 9-inch widescreen TFT display, resistive touchscreen, and robust connectivity via PROFINET and PROFIBUS DP. While reliable, users may face issues like black screens, slow performance, or touch unresponsiveness. This guide provides expert troubleshooting steps, backed by Vicpas, a trusted supplier of Siemens HMI replacement parts with over 20 years of global service.

Common TP900 Comfort Issues and Fixes

1. Black Screen or Failure to Start

Problem: The TP900 Comfort screen remains black or fails to boot into Windows CE 6.0, as noted in Siemens support documentation.

Solutions:

• Verify Power Supply: Ensure a stable 24V DC supply with secure connections. Loose or faulty power cables can prevent startup.
• Perform a Reset: Power off the unit, disconnect for 10 minutes, then restart to clear temporary glitches.
• Check Hardware: A faulty LCD may require replacement. Vicpas offers TP900 Comfort LCD displays with a 365-day warranty.
• Update Firmware: Use WinCC (TIA Portal) V11 or higher to install the latest firmware.

2. Slow Performance or Screen Glitches

Problem: Users report sluggish response or graphical bugs on the TP900 Comfort, impacting productivity.

Solutions:

• Clear Memory: Access the panel’s settings to clear the 12 MB configuration memory, as per the Siemens TP900 Comfort manual.
• Optimize WinCC Project: Ensure the project matches the TP900’s 800x480 resolution and 16 million color display.
• Recalibrate Touchscreen: Use the control panel to recalibrate the resistive touchscreen.
• Replace Protective Film: A worn film can cause touch issues. Vicpas provides TP900 Comfort protective films.

3. Unresponsive Touchscreen

Problem: The TP900 Comfort touchscreen fails to register inputs, often due to wear on the resistive sensor.

Solutions:

• Clean the Screen: Use a soft, lint-free cloth with a mild cleaner to remove dust or debris.
• Replace Touch Panel: If unresponsive, replace with a Vicpas touch panel.
• Test Inputs: The TP900 supports glove operation, so test with different input methods.

4. PLC Communication Failures

Problem: The TP900 Comfort fails to connect with PLCs over PROFINET or PROFIBUS DP.

Solutions:

• Check Network Settings: Verify the PROFIBUS address (up to 126) and transmission rate (e.g., 1.5 Mbps).
• Inspect Cables: Replace damaged cables with Vicpas TP900 Comfort cables.
• Update Drivers: Install the latest PROFINET/PROFIBUS drivers via WinCC (TIA Portal).

Why Trust Vicpas for TP900 Comfort Solutions?

At Vicpas, we specialize in Siemens HMI replacement parts, serving over 10,000 customers across 68 countries. With over 20 years of experience and ISO9001:2015-certified manufacturing, we deliver high-quality touch panels, LCDs, protective films, and cables for the TP900 Comfort. Our global supply chain ensures 95% of orders ship within 48 hours, backed by a 365-day warranty.

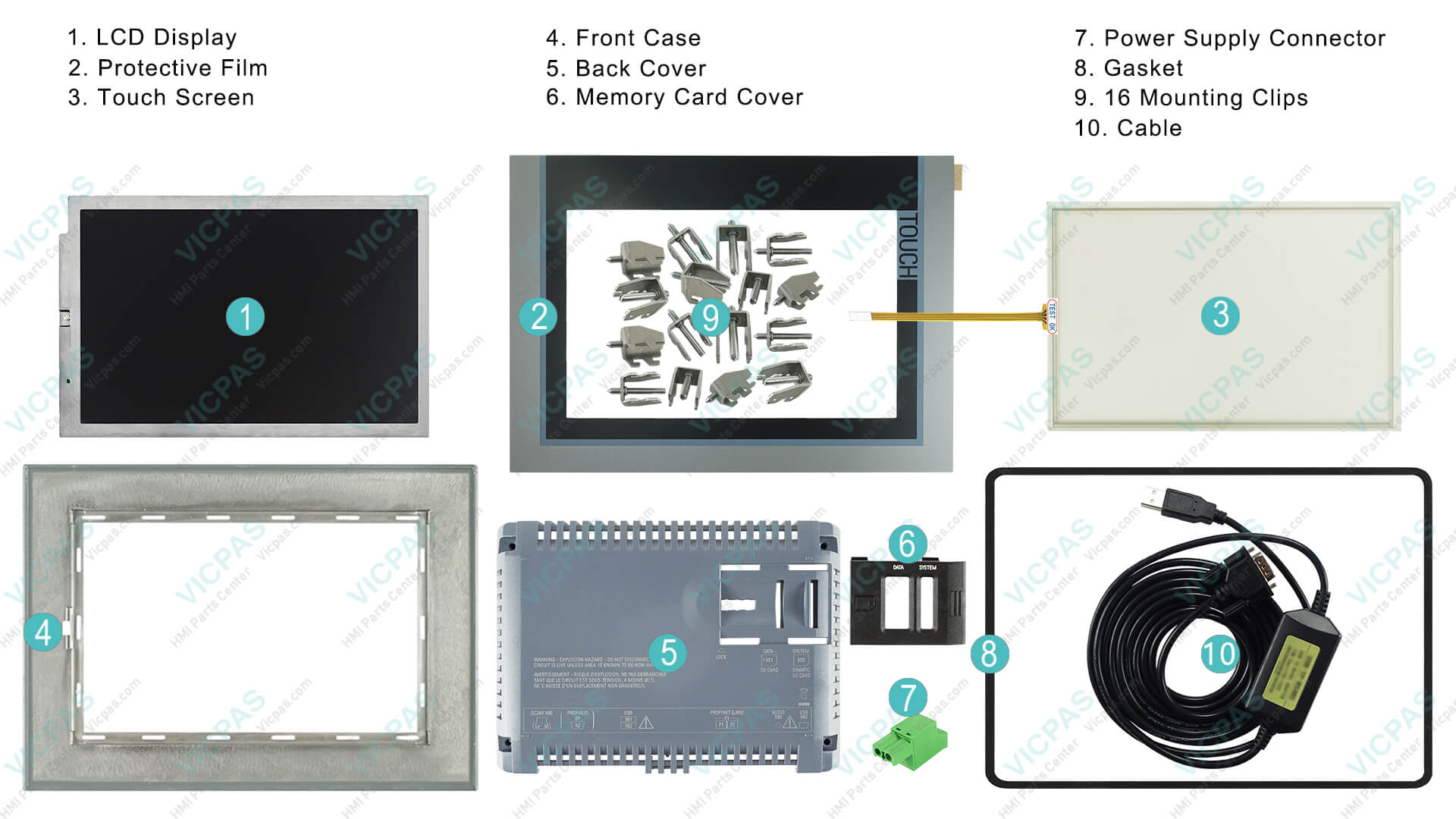

Our TP900 Comfort Offerings:

• Touch Panels
• Plastic Case Covers
• Protective Films
• LCD Displays
• Mounting Clips, Gaskets, and Cables

Shop TP900 Comfort Parts Now

Related Simatic TP900 Comfort Part No. :

Siemens TP900 Comfort	Description	Inventory status
6AG1124-0JC01-4AX0	SIPLUS HMI TP900 COMFORT	In Stock
6AV2144-8JC10-0AA0	SIMATIC HMI TP900 COMFORT INOX	In Stock
6AV2124-0JC01-0AX0	SIMATIC HMI TP900 COMFORT	Available Now
6AV2144-8JC20-0AA0	SIMATIC HMI TP900 Comfort INOX	Available Now
SIMATIC HMI TP900 Comfort	Description	Inventory status

Preventive Maintenance Tips

To maximize the lifespan of your TP900 Comfort (LED backlight up to 80,000 hours), follow these tips:

• Clean Regularly: Use approved cleaners to prevent dust buildup on the touchscreen.
• Update Firmware: Keep firmware current via WinCC (TIA Portal).
• Use Protective Films: Install Vicpas protective films to shield the touchscreen.
• Control Environment: Operate within 0–50°C to protect components.

Frequently Asked Questions (FAQs)

What software programs the TP900 Comfort?

WinCC (TIA Portal) in four editions configures the TP900 Comfort.

Where can I find the TP900 Comfort manual?

Download it for free from VICPAS.

Can Vicpas repair my TP900 Comfort?

We provide replacement parts for repairs. Contact us for assistance.
